Wood Skin Slab Cutting Saw 15kw Woodworking Left and Right Crawler Board Sawmill

Product Description

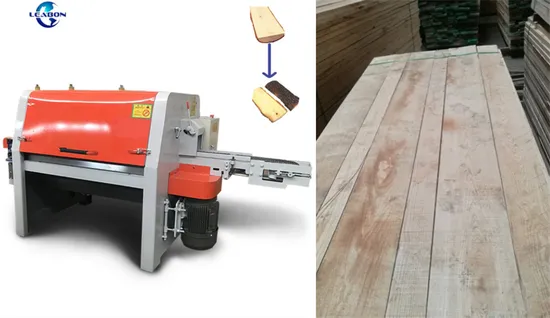

Wood Skin Slab Cutting Saw 15KW Woodworking Left and Right Crawler Board Sawmill
Product Introduction of Multi blade sawmill:
1.The long-slab upper and lower plates are multi rip saw with a horizontal axis, and the saw blade is sawed vertically. 2.Feed full power belt side pressure material,discharge belt power roller feed 3.It is suitable for the sawing and processing of the comer scraps of semi-circular board.
Specification of wood slab cutting saw

Model	LBSV100L	LBSV120L	LBSV150L	LBSV200L	LBSV250L	LBSV300L
Minimum processing thickness (cm)	10cm	12cm	15cm	20cm	25cm	30cm
Maximum processing width (cm)	15	15	15	15	15	15
Processing length (cm)	More than 50cm (continuous feeding)
Saw blade diameter (mm)	210	230	255	305	355	405
Total power (kw)	7.5x2	7.5x2	7.5x2	11x2	11x2	15x2
Feeding speed (m/min)	More than 10 meters
Feeding mode	Semi-automatic
Outer dimension (m)	1.9x1.6x1.5	1.9x1.6x1.5	1.9x1.6x1.5	1.9x1.6x1.5	1.9x1.6x1.5	1.9x1.6x1.5
Equipment weight (kg)	750kg	800kg	800kg	850kg	880kg	900kg

Different model of wood Slab Saw
Details of wood slab sawmill
Raw material and finally products of wood slab sawmill
Application of wood slab sawmill
Related products
Horizontal band saw Multi blade saw Vertical saw

Our company
Click"Send"to get price list and working video of the Wood Skin Slab Cutting Saw 15KW Woodworking Left and Right Crawler Board Sawmill.

---
