Model: HXProduction Capacity: 30Voltage: 00-Power: 11Frequency: 00G Operation Speed: High Functionality: Speed Product Category: Honeycomb Paper Core Machine

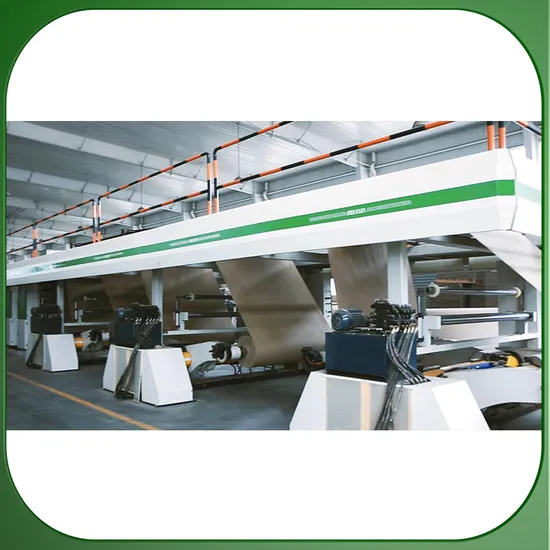

| ,HX3000-1100G High Speed Honeycomb Paper Core machine Main technical parameters of the equipment |
| | parameters | Specifications |
| 1 | Effective width of core paper | 1700mm-3000mm |
| 2 | roll diameter) | φ1400mm |
| 3 | Core paper weight | 80g/M²-150g/M²(Medium to high strength corrugated paper) |
| 4 | Adhesive | Starch glue,PVA |
| 5 | Finished paper core thickness | 4-15mm |
| 6 | Honeycomb paper core cross-cut production speed | 1100cuts/min(Thickness6mm,paper core weight90-120g) |
| 7 | Honeycomb hole side length | 4.5mm |
| 8 | Honeycomb flatness | ±0.1mm |
| 9 | Heating method | Steam heating |
| 10 | Equipment installed power | Approximately55KW |
| 11 | normal production power consumption | 55KW*50%-60% |
| 12 | Total weight of equipment | Approximately 90T |
| 13 | Equipment dimensions | 35310mm length×6000mm width×3800mm high |
| 14 | Equipment operation direction | To be determined |
| | parameters | Specifications |
| 1 | Effective width of core paper | 1700mm-3000mm |
| 2 | roll diameter) | φ1400mm |
| 3 | Core paper weight | 80g/M²-150g/M²(Medium to high strength corrugated paper) |
| 4 | Adhesive | Starch glue,PVA |
| 5 | Finished paper core thickness | 4-15mm |
| 6 | Honeycomb paper core cross-cut production speed | 1100cuts/min(Thickness6mm,paper core weight90-120g) |
| 7 | Honeycomb hole side length | 4.5mm |
| 8 | Honeycomb flatness | ±0.1mm |
| 9 | Heating method | Steam heating |
| 10 | Equipment installed power | Approximately55KW |
| 11 | normal production power consumption | 55KW*50%-60% |
| 12 | Total weight of equipment | Approximately 90T |
| 13 | Equipment dimensions | 35300mm length×6000mm width×3800mm high |
| 14 | Equipment operation direction | To be determined |
