| US$0.079-0.085 | 70,000 w (MOQ) |
| Model Type | Power(W) | Number of Cells | Dimensions(MM) | Weight(KG) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) |

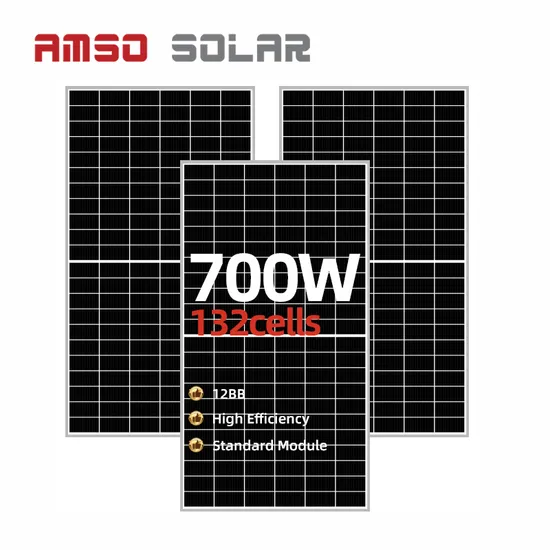

| AS650S9 | 650 | 132 | 2384*1303*35 | 34.5 | 37.9 | 17.15 | 45.5 | 18.32 |
| AS660S9 | 660 | 132 | 2384*1303*35 | 34.5 | 38.0 | 17.37 | 45.6 | 18.32 |
| AS670S9 | 670 | 132 | 2384*1303*35 | 34.5 | 38.1 | 17.59 | 45.7 | 18.33 |
| AS680S9 | 680 | 132 | 2384*1303*35 | 34.5 | 38.2 | 17.80 | 45.8 | 18.56 |
| AS690S9 | 690 | 132 | 2384*1303*35 | 34.5 | 38.3 | 18.02 | 45.9 | 18.79 |
| AS700S9 | 700 | 132 | 2384*1303*35 | 34.5 | 38.4 | 18.23 | 46.0 | 19.02 |
| Standard test conditions:measured values(atmosphiric mass AM.5,irradiance 1000W/m2,battery temperature 25ºC) | ||||||||
| Temperature rating | ||||||||
| Rated battery operating temperature | 45±2ºC | |||||||
| Maximum power temperature coefficient | -0.4%/ºC | |||||||
| Open circuit voltage temperature coefficient | -0.29%/ºC | |||||||
| Short circuit current temperature coefficient | -0.05%/ºC | |||||||
| Limit parameter | ||||||||
| Operating temperature | -40-+85ºC | |||||||
| Maximum system voltage | 1000/1500VDC | |||||||
| Maximum fuse rated current | 25A | |||||||
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
| FOB | |||||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
| CIF | |||||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
| West Union | Amount lower than 5000usd | ||||
| Delivery Time | 7-10 working days after receiving payment (should be decided according to quantity) | ||||
