Ss Industrial Water/Gas/Control Valve Male Female Threaded Stainless Steel SS304 316 CF8 CF8m Brass Mini Ball Valve Pn63 3/8"

Product Description

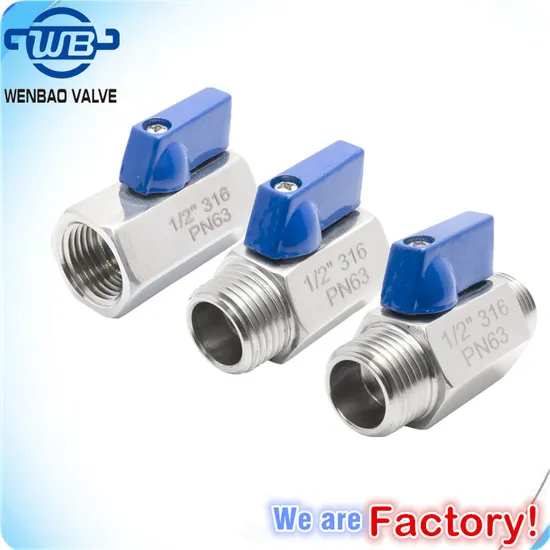

WB-82 Stainless Steel Mini Ball Valve (F/F)
Features:
PIPE THREAD IN ACCORDANCE: NPT, BSPT, BSPP
TEMPERATURE RANGE: -20ºC~150ºC
SUITABLE MEDIUM: WATER, OIL, AIR
NOMINAL PRESSURE: 1.6~6.4MPA
INVESTMENT CASTING BODY
MATERIAL: CARBON STEEL/SCPH2/WCB
STAINLESS STEEL/304/SCS13
STAINLESS STEEL/316/SCS14

Main Parts and Materials

1	Body	SS304/SS316	5	Screw	SS304/SS316
2	Cap	SS304/SS316	6	Stem	SS304/SS316
3	Seat	PTFE	7	O-Ring	NBR
4	Ball	SS304/SS316	8	Handle	SS304/SS316

Main Dimensions

DN	G	D	L	W	H
6	1/4"	7	42	23	26
10	3/8"	7	42	23	26
15	1/2"	9	46	23	28
20	3/4"	12	54	23	31
25	1"	15	62	23	34

Company Overview
Wenbao Valve Co.,Ltd was established in 1985. The main products range are as following: Fully Welded Ball Valve,1PC/2PC/3PC Flanged Ball Valve, Threaded Ball Valve, Mini Ball Valve, High Pressure Ball Valve, Pneumatic Ball Valve, Electric Ball Valve, Sanitary ball valve, Ball valve with mounting pad and other valves like gate, globe, check valves and Strainer, etc. Main material include: Stainless steel, Cast Steel, Forged Steel and Brass, etc. The products manufactured as per API, ANSI, JIS, ISO, BS, JB and GB, and have CAD valve design and quality testing center. The products are widely used in chemical industry, oil, metallurgy, light industry, electric power, food, pharmacy, civil industry, fiber industry, liquefied natural gas, liquefied petroleum gas, steel mills, heating pipes, etc. Our company passed the ISO 9001:2008, Standards Organization of Nigeria(SON), International Quality Award Certificate, Manufacture License of Special Equipment, KC of South Korea,CE of Europe, etc.

---
