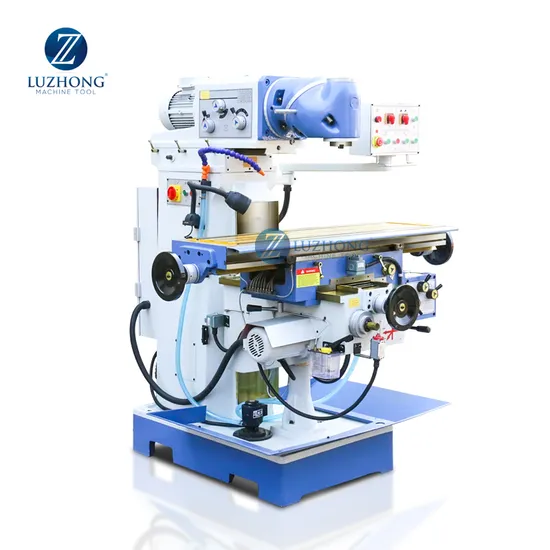

Universal metal High quality X6232 Vetical Manual Milling Machine

Product Description

Universal metal High quality X6232 Vetical Manual Milling Machine
Product Description
The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two grade rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing mold and shell;
4.Table X,Y axis motorized feed Product Parameters
Product main technical parameters:

Specifications	Units	X6232
Spindle taper		7:24 ISO40
Distance from spindle nose to table surface	mm	120-490
Distance from spindle axis to column surface	mm	0-500
Spindle speed range(steps)	rpm	35-1660
Vertical milling head rotary angle	°	360
Table size	mm	1250x250
Table travel	mm	600x320x370
Table motorized feed speed (longitudinal /cross)	Mm/min	(8 steps)22-555 (fast 810)
Table vertical lifting speed	Mm/min	560
T slot		3-14-70
Main motor power	KW	2.2
Motorized feed motor power	KW	0.75
Lifting motor power	KW	0.75
Coolant pump motor power	W	90
Coolant pump liquid	L/min	25
Overall dimensions	mm	1700x1560x1750
N.W./G.W.	Kg	1320/1420

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
