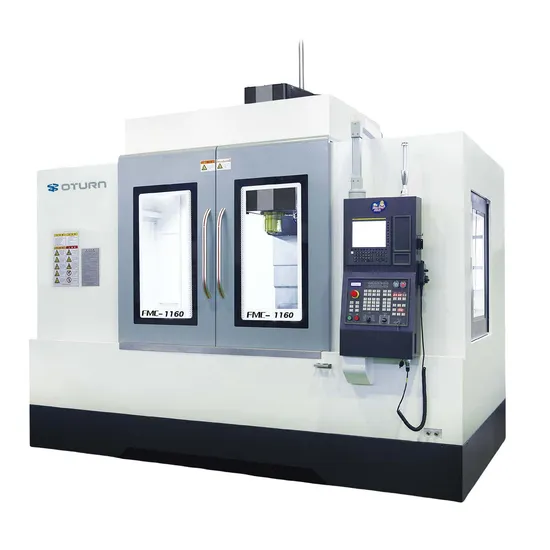

High Quoality and Better Performance 3/5-Axis Vertical Machining Center Vmc Fmc-1160

US$28,500.00-210,000.00 1 Set (MOQ)

Basic Info.

Model NO.
FMC-1160
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, Mitsubishi
Tool Magazine
24 PCS,32 PCS
Spindle
Bt40,Bt50,Hsk63
Guide Rail
Linear Rail or Hard Rail
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
3220*2400*2600
Trademark
Oturn
Origin
China
HS Code
8457101000
Production Capacity
1200/Year

Product Description


Product Description
This series of vertical integrated processing machines, advanced design concepts, solid mechanical structure, stability, smoothness, and movement combine to reflect high-precision, high-speed excellent performance, and high-capacity models. Suitable for high precision mold industry and precision metal processing industry.
The bed and herringbone column are made of densely baked castings with ribs. This casting has excellent stability and good shock absorption characteristics even under heavy cutting conditions. The worktable is fully supported by the integral saddle without any suspension. The four-rail design of the base ensures long-term rigidity and accuracy. The guide rails undergo induction hardening heat treatment and precision grinding. The plastic guide rails plus strong lubrication reduce surface friction and reduce wear.
Adopt well-known brands of high rigidity and precision linear slide rails, the process technology is like manufacturing bearings, with zero clearance and all-round bearing characteristics. Linear slide has low consumption, high precision and fast moving speed, up to 48m/min.
The servo motor is directly connected to the screw rod through a rigid coupling without backlash, which can ensure the processing accuracy. Even if it is a very complex task, it can also process sharp cut angles, which ensures the processing accuracy.
High-speed, high-precision, high-rigidity; excellent models for heavy-duty and heavy-cut, Y/Z axis adopts 45° roller linear guide, and Z-axis adopts heavy-duty six-slider design.
Each machine tool has undergone heavy-duty full-tool testing to ensure that even heavy-duty tools can run smoothly and change tools.
Product Parameters

Item Unit FMC-1160
Machining range
X axis travel mm 1100
Y axis travel mm 600
Z axis travel mm 600
Distance from the nose of the spindle to the worktable mm 120-720
Distance from the center of the spindle to the track surface of the column mm 650
Worktable
Table size (X axis direction) mm 1200
Table size (Y axis direction) mm 600
Max. load of workbench kg 1000
T-slot mm 5-18*100
Spindle
Spindle speed rpm 12000
Spindle transmission Direct connect
Spindle taper BT40
Feeding system
G00 rapid traverse (X/Y/Z axis) m/min X/Y/36 Z/30
Cutting feed movement m/min 1-10
Motor
Three-axis motor kw X/Y/Z/ 3.0
Lubrication motor kw 0.025
Cutting motor kw 0.46
Machine weight kgs 6500
Machine size mm 3220*2400*2600
Positioning accuracy mm 0.003
Repeat accuracy mm 0.002
Spindle power kw 15/18.5
Tool change time s 1.6



Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.
