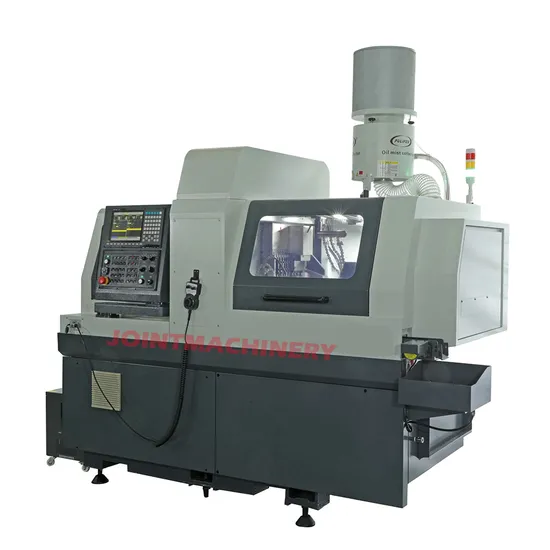

5 Axis Metal Turning Lathe Slm265-3 Horizontal Swiss Lathe Machine CNC Torno

Product Description

√ Each axis uses imported high-precision linear guide,ball screws and precision bearings.
√ Use synchronous guide bush structure,realize high-speed and high-precision machining.
√ With guide bush and non guide bush mode,flexible switching to meet the needs of different processing technology.
√ Key components with gas sealing structure, oil and slag prevention, improving service life and stability.
√ Select high torque motor, high rigidity and strength each axis slide and tool installation seat to meet the requirements of large cutting volume and high processing efficiency.
√ High scalability, with different tool quantities matched according to the process, resulting in high cost-effectiveness.
This series of machines are precision processing equipment that can complete composite processing such as turning, milling, drilling, boring, tapping and engraving at the same time. They are mainly used for batch processing of precision hardware and special-shaped non-standard shaft parts.
5 Axis Metal Turning Lathe SLM265-3 Horizontal Swiss Lathe Machine CNC Torno

Model		Unit	SLM265-3
			5 axis, dual spindle
NC system			SYNTEC 22TB
Lathe rated power		kw	15
Machining Range
Max machining diameter		mm	Φ26
Max machining length (one-time clamping) With guide bush		mm	230
Max machining length (one-time clamping) Non guide bush		mm	2D
Main spindle power		kw	2.2/3.7
Sub spindle power		kw	2.2/3.7
Main spindle max through hole dia		mm	Φ27
Main/Sub spindle rev speed		rpm	10000/10000
Sub spindle max clamping dia		mm	Φ26
Sub spindle max through hole dia		mm	Φ27
Max tool installed qty		pcs	21
OD Turning Tool
Qty*Model		mm	6*12
Cross Live Tool
Cross live tool		mm	4*ER16
Drilling dia		mm	Φ10
Tapping/Threading die dia		mm	M6
Live tool rev speed		rpm	5500
Live tool power		kw	1
End-Face Tool (Main Spindle)
Fixed	Qty*Model	mm	4*ER16
	Drilling dia	mm	Φ10
	Tapping/Threading die dia	mm	M8
Live	Qty*Model	mm	3*ER16
	Drilling dia	mm	Φ10
	Tapping/Threading die dia	mm	M6
	Live tool rev speed	rpm	5500
	Live tool power	kw	0.75
Back End-Face Tool (Sub Spindle)
Fixed	Qty*Model	mm	4*ER16
	Drilling dia	mm	Φ10
	Tapping/Threading die dia	mm	M8
End face live tool		mm	-
Side-live tool		mm	-
Drilling dia		mm	-
Tapping/Threading die dia		mm	-
Live tool rev speed		rpm	-
Live tool power		kw	-
Rapid feed speed		m/min	18(X1) 24 (X2/Y1/Z1/Z2)
Feed motor power		kw	1
The power capacity		kva	15
Air pressure device		mpa	0.6
Weight		kg	3500
Dimensions (L*W*H)		mm	2450*1350*1850

Tool Configuration
Machine Configuration
Standard Configuration:
SYNTEC numerical control system
Main pneumatic chucking device
Movable guide bush
Synchronal rotary guide bush device
Live tool
Workpiece belt conveyor
Optional Configuration:
Non guide bush
MITSUBISHI numerical control system
FANUC numerical control system
High pressure pump
Oil mist collector
Y2 tool holder
Chip conveyor
Long workpiece collector

Bar Feeder Details
Bar Feeder SLM-320/S2 Technical Specifications
Diameter	mm	Φ3- (Φ20) Φ26 (May vary depending on applications)
Model	m	2.5	3.2	3.7	4.0
Magazine capacity		Φ5mm*52pcs
Overall length	mm	3355	3949	4505	4855
Overall width	mm	720
Max bar length	mm	2600	3200	3750	4100
Weight	kg	378	393	435	440
Air pressure	kg/cm2	5~7
Power supply		220V 3P (Varying power supply is available depending on applications)
Spindle height	mm	900~1200
Headstock type		Fixed/Sliding
Options		Telescopic Tube,Synchronization Device

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
