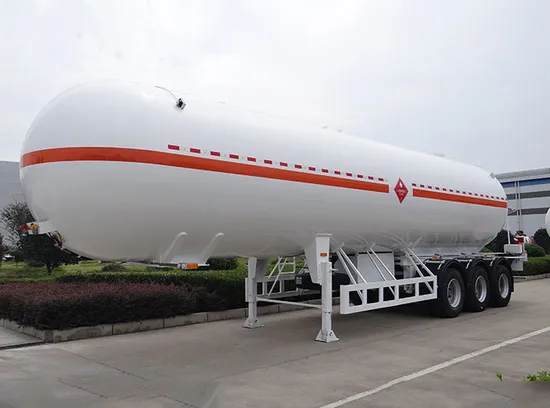

China Manufacturing 3 Axles ASME LPG Semi Trailer Gas Tanker

Product Description

Product Description
Specification
LPG Semi Trailer Tanker

Design Code	ASME BPVC Section VIII, Division 1 2017Edition
Capacity	47.5m3
Liquid	LPG
Liquid Density	0.54ton/m3(15 ºC)
Curb Weight	14000kg
Filling Weight	23000kg
Total Weight	37000kg
Design Pressure	1.72MPA
Maximum allowable working Pressure	1.72MPA
Design Temperature	-23.3~51.7ºC
Hydrotest Pressure	2.24MPA
Overall Dimension	13150*2500*3850 (mm)
Shell Material	SA-612M(Normalized)
Shell Thickness	12 mm
Head Material	SA-612M(Normalized)
Head Thickness	8mm
Head Type	Hemi-spherical front and rear heads

Packing & Delivery
Company Profile
Our company is one of main factory in China Chemical Equipment Group, and as well as the biggest pressure vessel manufacturer in Zhejiang. Sep. Established in 1972 years, We're engaged in design and manufacture pressure vessel for more than 40 years, and have the Design License of Special Equipment (Pressure vessels of type) (RSPZJHG0401-2), It has the following licenses issued by the State Administration of Quality Supervision, Inspection and Quarantine: A1, A2, B3, C2 and C3 pressure vessel manufacturinglicenses; the design license for A1, A2, C2 and C3 pressure vessels; and the design license of GC1(3), GC2 and GC3 pressure piping .
5m3,10m3,15m3,20m3, 30m3,40m3, 45m3,52m3 LPG/LNG/LO2/LN2/LAR/LCO2 ISO Container Tank, Cryogenic Tank ,Microbulk tank, and SEMI trailer , We have passed ASME/EN/CCS/ ISO1161/688 /ISO149613 International Quality Supervision System Certification. We own 170000 square meter building size The total assets is 180 million, has 500 workers and staff members, including 55 technician (6 super- engineer, 19 engineer, 10 primary technician, 1 super-technician, 4 technician, 15 Nondestructive Tester (RT, UT). There're 8 departments, such as technology, production, sales, quality, purchase, finance, secretary and standard, 1general management office, 1 international export office (Ningbo DSW), 5 workshops and 1 Installation Company. Set up the Welding Test station with Ningbo Bureau of Quality and Technical Supervision. Quality Guarantee System charged by quality engineer, design engineer, welding.

FAQ
Q1: If you are factory or trade company?
We are manufacturer with more than 20 years.
Q2: What is your delivery time?
We promise 60-120 days once deposit paid and workshop drawings confirmed.
Q3: What is your payment terms?
We accept TT and L/C at sight.
Q4: What is your packing for all tanks?
We can pack all tanks by pallet , also no pallet is available for different type tank.
Q5: Can you provide OEM design?
Yes, we can, we are factory under ourself R&D team, so custom container is welcome.
and we can make customerbrand name on tank shoulder, color, printing, etc...
Q6: What is your MOQ?
Our MOQ is 1 pcs.
Q7: Do you have any protection for the head of the tank?
Yes, in our factory, each cylinder is protected by standard cap which can make sure the safety
of torch during the transportation.
Q8: What is your advantage with other competitors?
We are factory with excellent equipment and high quality control system, and our factory price is more competitive, fast
shipment with high quality, our service is also best with 24 hours on line for fast reply your requestments.

---
