High Cost Cheap Performance Multi Compartment Paper Food Lunch Box Forming Machine Chj-a

US$18,000.00
1-2 Sets
US$16,000.00
3-4 Sets
US$14,000.00
5+ Sets

Basic Info.

Model NO.
CHJ-A
Speed
30-40 PCS/Min
Required Paper
Single Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
After-sales Service
1 Year
Transport Package
by Wooden Packaging
Specification
2320(L)*1430(W)*1500(H)mm
Trademark
Koten
Origin
China

Product Description

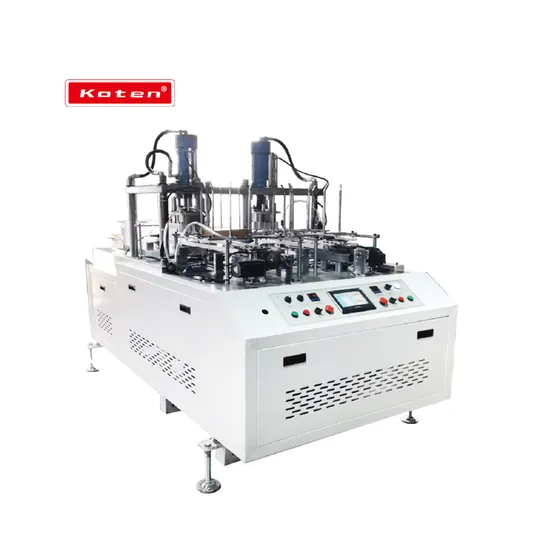

Double-Head Heavy Lunch Box Forming Machine lt has the advantages of fast speed, simple operation, high efficiency and environmental protection automatic feeding. Hot, pressing, automatic counting and collection, mechanical action Program control and fault monitoring.This type of machine equips with hot air generating device, suitable for single PE coated paper, kraft paper, etc, for the production of single-piece disposable paper lunch boxes covered with lid, paper boxes, kraft paper boxes and other food paper packing box.

Type CHJ-A
Production Capacity 30-40 pcs/min
Max Paper Convey Size 250*300mm
Max Paper Convey width 400mm
Suitable Material 200-400g/m² (PE Coated paper)
Total Power 15KW
Total Weight 1.3T
Overall Dimension 2320(L)*1430(W)*1500(H)mm
Working Air Source Air pressure 0.4-0.5Mpa (Need to buy compressor)
Source Pressure 8T

Item Brand Origin
Servo motor Riding China
PLC Inovance China
Frequency converter Inovance China
Photoelectric switch Autonics Korea
Contactor Schneider French
Relay Schneider French
Photoelectric switch Autonics Korea
Start switch Autonics Korea
Tem control Aiset China
Main cylinder Airtac Taiwan
Other pneumatic components China famous brand China
Other bearings HBR China
Aston 7.5 kw China
