Good Quality! Pneumatic Ultrasonic Quilting Machine for Bedding Cover (with CE)

Product Description

Good quality! Pneumatic ultrasonic quilting machine for bedding cover (with CE)
Model: MS-1600

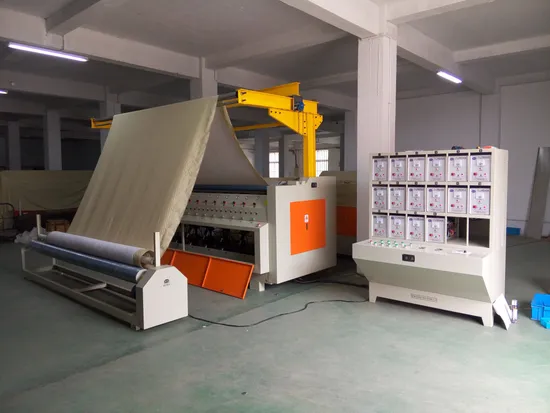

1. Machine and sample pictures:
2. Technical specifications:

Good Description:	Ultrasonic quilting machine
Model:	MS-1600
Voltage Supply:	380V/50Hz (60Hz)/3Phase/4cables
Installed Power:	9KW - (actual power consumption: about 9KW*60%=5.4KW)
Ultrasonic Frequency:	20KHz (15KHz available for option)
Working Speed:	0-13m/min, adjustable depend on quilting thickness.
Quilting Work Width:	1600mm
Pattern Roller Sizes:	1750MMxØ(200-216)MM
Materials Suitable:	Polyester, nylon, polyester wadding, and non-woven fabrics.
Usages:	Ultrasonic non-needle & non-thread quilted/laminated materials can be used in bedding, light quilts, sofa clothing & lining, garment clothing & linking, building materials, car seat fabric, soft decorative material, laminated non-woven for medical product, filtering industries and so on.
Packing Volume:	About 14.80M3
Gross Weight:	About 3830.00KGS

3. Basic Equipment:
1) This machine adopts the latest ultrasonic control cabinet with stable and strong power, which is suitable for long operation. There is computer core plate in it; The multi-line ultrasonic protection system guarantees stable operation of mainframe.
2) Structure of whole machine:
(1) Embossing compound mainframe;
(2) Ultrasonic control cabinet;
(3) Finished products rewinding machine;
(4) Bracket for putting materials.
4. Characteristic:
1). Without needlework that omits the bother of replacing line; The product is beautiful;
2). It has better outlook that is suitable for times.
3). It can replace pattern at random according to request.
4). It has high stitching capacity with high efficiency.
5. Applied Example:
Producing kinds of fiber textile, artificial leather, spraying rubber cotton, non-woven fabrics or the compound of needle-punched cotton; It can design pattern at random; The lining production of costume, bedspread, pillow, sofa and the production of inner decoration.

---
