Big Scale Brick Business Qt10-15 Full Automatic Brick Making Machine Production Line

Product Description

Product Introduction

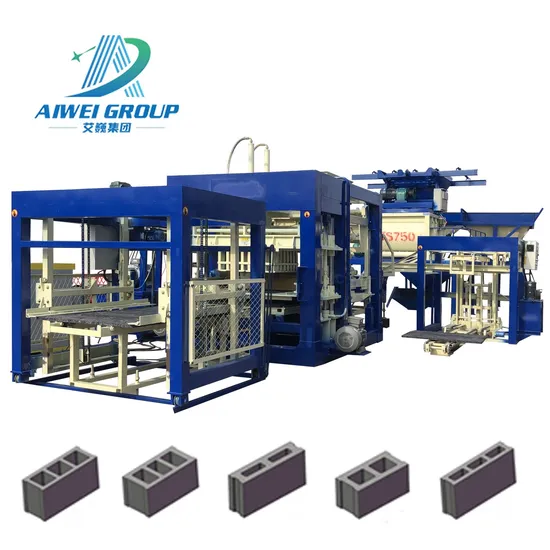

QT 10-15 Huge Fully Automatic Concrete Block Making Machine
1) Fully automatic production line with high degree of automation, which can realize automatic production of feeding, mixing and forming, conveying and curing, palletizing and packing process.
2) Unique forced charging device can use various raw materials such as cement, crushed stone, slag, volcanic slag, coal ash, ceramsite, etc.
3) By changing molds can produce concrete hollow bricks, solid bricks, paver blocks, curb stones etc.
4) The cycle is 10-15s, is very short, and every time can produce 10psc (400*200*200mm) bricks.
5) Suitable for medium or large enterprises to invest in the establishment of semi-automatic or fully automatic production lines to realize automated production.
Main Parameters

Power	50 KW
Cycle	10-15 S
Weight	10000 KG
Pressure	25-35 Mpa
Method	Vibration & Hydraulic
Pallet Size	1100*900*27 mm
Over All Dimension	5700*3000*3200 mm

Product details

Capacity & Blocks

QT10-15 automatic concrete cement block making machine can product hollow blocks,solid brick, paver brick or curbstone etc. by changing molds. Here are our popular types of blocks (also can custom):


Packing & Delivery

Company Profile
Service & FAQ

---
