6 Cavity Automatic Pet Bottle Blow Molding Machine

Product Description

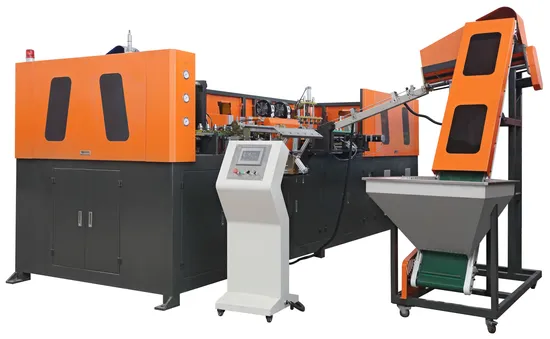

6 Cavity Automatic PET Bottle blow molding machine
6 Cavity Automatic Pet Stretch Blow Moulding Machine is used to Blow PET bottles from PET preform, It is complete Automatic Machine which can be attached on line with Filling Machine which reduces manpower and increase efficiency. We have 2 cavity, 4 Cavity, 6 Cavity, 12 Cavity & 16 Cavity Linear Pet blow machines Which canreach 20, 000 Bottle per hour.
Our machine can be used for Mineral Water Bottles, Hot Filled Juice Bottles, Cold Fill Carbonated drinks & other Pet Bottle usage & Applications.
Features:
Quick mold change-over using mold cage system.
Power equipped machine using air recovery system
Precise Heating System using Heating Power adjustable in decimals.
High Output per Cavity compare to the other Machines.
Specially designed feeding system carries the preform automatically.
Easy installation and starting.
Advanced PLC control system with a use-friendly Control Panel.
Smooth and steady operation.
Long service life and reliable performance.
Independent & simple linear running system.
Powerful & efficient heating unit with precision control and convenient adjusting device.
Equipped with specially designed air storage unit.
Cooling system to get perfect cooling result.
Technique Parameter of blow molding machine:

Main part:
Pneumatic part	Valve	SMC
	Cylinder
Electric part	PLC	SIEMENS
	Operating System	SIEMENS
	Relay	OMRON
	Servo motor National	SIEMENS
Note	All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.

Model	BM-A6
Productivity	Depend on bottle design	5000-7000PCS/H
Product type	Body diameter	≤90mm
	Height	≤325mm
	Neck diameter	28mm-30mm
Mold	Cavity	6 cavities
	Mold thick	240mm
Main machine power	Electrical source power	380v 3Phase /220v 3Phase 50/60HZ
	Rated Power	53kw
	Really use power	24kw
Air source	LP air compressor	1.6m3/min 1.0MPa
	HP air compressor	3.2m3/min 3.0MPa x 2
	Air dryer	6.0m3/min 3.0MPa
Cooling water	Cooling water	60L/min
Machine Size	L*W*H	5000*2800*2200mm
	Weight	4800kg
Auxiliary equipment preform unscrambler	L*W*H	2300*1500*2480mm
	Weight	350kg
Resin available		PET

---
