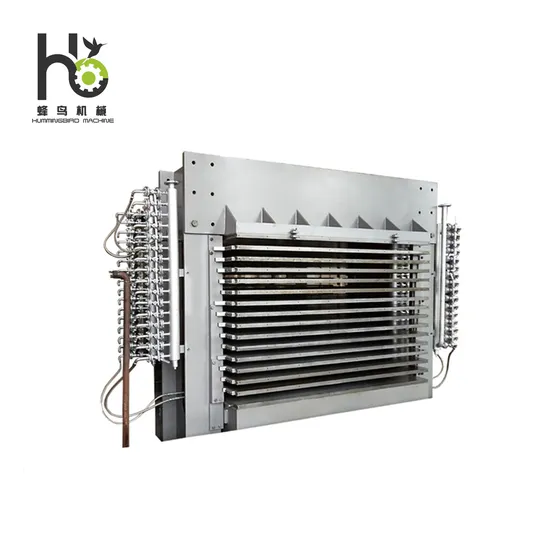

Laminating Wood Layers Heat Press Machine for Plywood

Product Description

The hot pressing system, heating system, and heat conduction system feature a lightweight and meticulous design. They consume less heat and ensure uniform heat conduction. The mechanism is installed on the surface of the hot pressing machine. With a reasonable layout, the machine's parts are machined with high precision. The process parameters can be adjusted over a wide range, and the overall process control design is rational. This setup can meet a diverse range of requirements for veneer production processes.
1. The Main frame is welded by Good Quality No. 1standard steel plate, Gooddesign of frame and structure,Strong Rigidity,and ensure high pressure, lt isspecialdesigned to Container loading for Exporting market.
2.Microcomputer control,automatic,easy to operate andlong life working
3.Hydraulic control system is made by good qualityhydraulic unit, Fastpress,precisely and high efficiency. Product Parameters

Hot Press Model	BY213 -6	BY214-8
Product Specification (FT)	3*6	4*8
Total Pressure Of Hot Press (T)	400-600	400-800
Layers	8-20	8-20
Hot Platen Size (mm)	1150*2150*42/52	1370*2700*42/52
Cylinder Specifications	2-320	2-320/2-360/4-320
Hot Press Power (Kw)	11+7.5	15+7.5
Rack Form	Combined Frame/Overall Frame	Combined Frame/Overall Frame

Max pressure	500 T
Board feeding direction	Transverse
Layers	15
Layer spacing	70mm
Number of hot press plate	16
Hot press plate size	2700*1370*42mm
Cylinder	1*ø180mm*1050mm 2*0360mm*1050mm
Cylinder Stroke	1050mm
Compression resistance	≤25 Mpa
Total Power	7.5KW+18.5kw
Overall dimension	3550mm*1370mm*4650mm
Composite frame	Assembled
Upper and bottom beam	900mm
Middle beam	400mm
Thickness of the frame	35 mm
Weigh	33T

Detail Accessories
WUXi chrome cylinder
chrome surface,anti-rust treatment,iron cast and heavy duty.
Polishing hot platen
The hot platen is after polishing,verysmooth and high accuracy. thermal oildouble inlet and double outlet .
Control system
Adopt Taiwan Delta automatic PLC system,the whole machine is automatic operation,easy to operate.Electrical components aresiemens Brand
Silent dustproof
Hydraulic station uses TAlWAN hydrau-lic technology.lt uses Sicmens brandmotor,KINYUN solenoid valve,TAIWANHEANG bydraulic.
Features
Full Service Process

Pre-sale service 1.Provide the free consultation of equipment
2.Provide the standard device and the flow chart
3.According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4.Welcome to visit our factory Service during the sales 1. Inspect the machine before leaving the factory
2.Oversea install and debug the equipment
3. Train the first-line operator After sales service 1. 24 hours online service
2. Provide the VIDEO with install and debug the equipment
3. Provide technical exchanging

---
