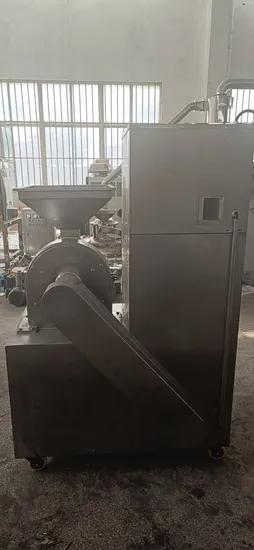

Dust Collecting Crusher Crushing Machine for Pepper Milling

Product Description

Main Application:
Applied for such trades as pharmaceutical, chemical and foodstuff etc., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.

Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of teeth and impact among material. The crushed material is entered into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
Main Technical Specifications:

Model	20B	30B	40B
Production Capacity	60-150kg/h	100-300kg/h	160-800kg/h
Spindle speed	4500r/min	3800r/min	3400r/min
Feeding size	6mm	10mm	12mm
Crushing fineness	60-150mesh	60-120mesh	60-120mesh
Crushing motor	4KW	5.5KW	11KW
Dust collecting motor	1.5KW	1.5KW	1.5KW
Overall dimension(mm)	550×600×1250	600×700×1450	800×900×1550

---
