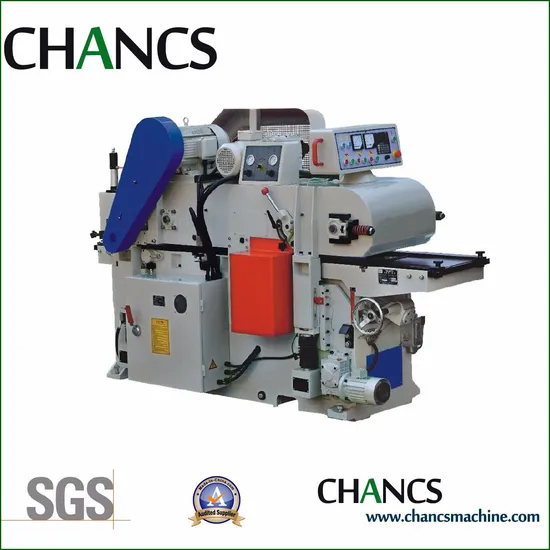

Double Side Thickness Planer Woodworking Machine 410mm Width

Product Description

Features of double side planer
1.Features:
1.The machine body is casing lathe and processed by CNC center, which is strong and durable. Can make sure machine running in good condition and precision working.
2. High precision main spindle and imported bearing can make sure the wood surface in high quality and accuracy.
3. Working table is chromate treatment, smooth, flat, harder and durable
4.The bottom spindle can be pulled out easily to replace the blades. Safer, easier and more convenient.
5. Electrical components international famous brand like OMRON, SCHNEIDER as well as other brands, which can make sure machine safety running and easy maintenance.
Specification:
2.Parameters:

Model	CH204F	CH204H	CH206F	CH206H
Working width	430mm	430mm	630mm	630mm
Working thickness	200mm	200mm	200mm	200mm
Mini. Working length	260mm	260mm	260mm	260mm
Max. Cutting depth (Top spindle)	8mm	8mm	8mm	8mm
Max. Cutting depth (Bottom spindle)	5mm	5mm	5mm	5mm
Cutting shaft diameter	Ø101mm	Ø101mm	Ø101mm	Ø101mm
Spindle speed	5000r/min	5000r/min	5000r/min	5000r/min
Feeding speed	4-16m/min	0-16m/min	4-16m/min	0-16m/min
Top & Bottom spindle motor power	7.5/7.5kw	7.5/7.5kw	11/7.5kw	11/7.5kw
Feeding motor power	2.2kw	2.2kw	2.2kw	3kw
Total weight	2100kg	2450kg	2500kg	2800kg

3.Detailed Images:
4.Factory:
5.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
5. Q:What's your website:
R:http://chancsmac.en.made-in-china.com

---
