XCMG Official Stationary Climbing Concrete Placing Boom

Product Description

Product Description

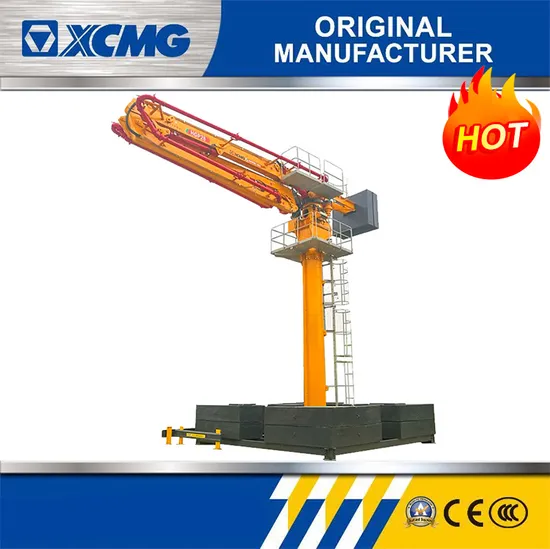

XCMG Official Stationary Climbing Concrete Placing Boom
Concrete placing boom is a kind of equipment used together with concrete pump, which can rise inside building and realize ideal concrete placement. The structural parts mainly consist of foundation base, standard section assembly, climbing device, base frame, turret assembly, boom assembly and protection device, etc, The hydraulic and electrical parts mainly include swivel device, slewing bearing, power unit, climbing and elevating cylinder, hydraulic system and pipeline, electrical system, hydraulic oil tank and slewing lubrication, etc.
* Automatic climbing technology
Now, most placing booms in the market adopt cylinder jacking for climbing. The adoption of this climbing technology is good for our company to form products and enter into the market rapidly. The accumulation of relevant experience has laid a foundation for developing an automatic climbing system of better performance and stronger operability.
* External linkage of concrete pump truck boom
The design of "Front Two, Rear Three" structural type external linkage has effectively improved the problem of boom transverse swing. The optimization of connecting pin roll fixing ways has ensured the distance between booms, avoided possibly existing interference problem and guaranteed reliability.
* Full filtering
All loop tanks are equipped with full filtering system of oil suction and oil return which ensures system cleanness, prolongs service life of hydraulic elements and hydraulic oil, and generates higher operational reliability of hydraulic system.
Product Parameters

ITEMS		UNITS	PB28A-3R-II [HG28A-3R-II]	PB32A-3R-II [HG32A-3R-II]	PB33A-4R-II [HG33A-4R-II]
	Max Radius of Placing Boom	m	27.7	31.7	32.4
	Free standing Heightflb	m	21.3	21.3	21.3
Performance	Slewing Range	/	360°	360°	360°
	Circumstance Temperature	°C	-20-55	-20-55	-20-55
Motor	Power	kW	11	11	18.5
Hydraulic Pressure		MPa	28	28	30
Mode of Slewing		/	ear Slewing	Gear Slewing	Gear Slewing
Application scenario		/		Floor Climbing or Shaft Climbing
Total Weight		kg	16200	18150	20100
Max Lifting Unit		kg	4100	4150	4800

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
