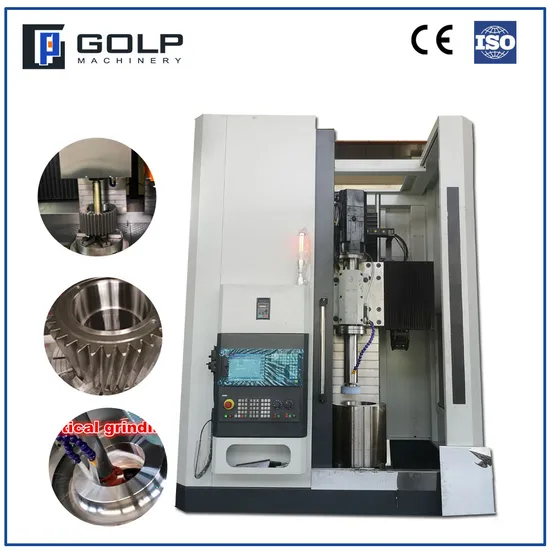

Precision CNC Internal Cylindrical Grinding Machine for Large Bearing

Product Description

Vertical internal grinding machine series

1. This machine tool is a two axis two linkage CNC vertical internal (or external) grinding machine, which can grind the internal (external) circle of parts, step holes and other multiple surfaces. 2. The machine tool is a single column (Z axis) on which a beam (X axis) is erected. (Z axis) moves up and down. (X axis)moves left and right.The static spindle is fixed on the machine bed to drive the work piece to rotate. and the work piece fixture adopts magnetic chuck or chuck. 3. The machine tool is fully enclosed and protected. The electrical cabinet is installed at the back of the machine body, and the mobile control box is located at the right front of the machine tool. The left and right dressers are used for grinding wheel dressing. lt has the functions of automatic grinding wheel dressing and automatic compensation. 4. Strong load-bearing capacity: the larger table and strong support system can stably support and machine large and heavy workpieces, such as large bearings, cylinder blocks, gears, etc. 5. Versatility: It can be equipped with a variety of accessories and tools, such as grinding wheels of different sizes, coolant nozzles, etc., to adapt to different types of workpieces and machining needs.

1	Max. Grinding internal diameter ( mm )	300
2	Max. Grinding external diameter ( mm )	400
3	Max. Grinding depth ( mm )	300
4	Diameter of magnetic chuck (or chuck) ( mm )	400
5	Max. rotation diameter of work piece ( mm )	500
6	Max weight of work piece ( kg )	300
7	Max. Stroke of X axis ( mm )	600
8	Max. Stroke of Z axis ( mm )	500
9	Max. Moving speed of X Z axis ( m/min )	6
10	Resolution of X Z axis ( mm )	0.001
11	Rotating speed of static pressure workbench ( rpm )	10--100
12	Weight of machine tool ( kg )	8200
13	Overall dimension of machine tool ( mm )	2500x2600x2800
14	Roundness ( um )	2
15	Cylindricity ( um )	3
16	Surface roughness(um)	(Ra0.3)

You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
