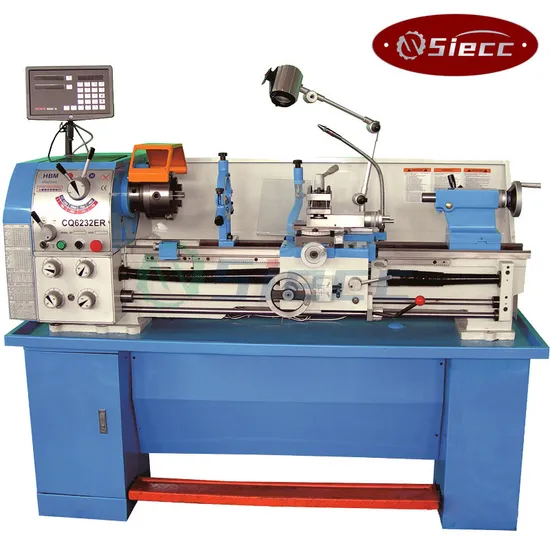

Cq6236b/Cq6232b Bench Lathe Machine

Product Description

Capacity	Swing over bed	320mm	12-4/5"
	Swing over gap	476mm	18-3/4"
	Swing over cross slide	198mm	7-25/32"
	Distance between centers	750mm/910mm/1000mm	30"/36"/40"
Spindle	speed range	65-1400rpm(or 65-1810rpm)
	spindle bore	38mm	1-1/2"
	taper of bore	No.5Morse
Travel	Longitudinal feeds range	36kinds0.079-1.291mm/rev	0.003"-0.0508"
	Cross feeds range	36kinds0.017-0.276mm/rev	0.0007"-0.0108"
Feed	Metric threads range	0.4-7mm
	Inch threads range	4-60T.P.I
Tailstock	Travel of tailstock sleeve	100mm	4"
	Morse taper of tailstock sleeve	No.3Morse
Others	Power of main motor	1.1kw
	Weight	550/590/670kgs
	size	1480/1680/1940*750*1400mm

Precision ground and hardened bedways
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Three different length beds are available
Easy operating speed change levels
Removable gap is provided for large diameter work
Easy operation gear box has various feeds and thread cutting function
With or without foot standard for optional

---
