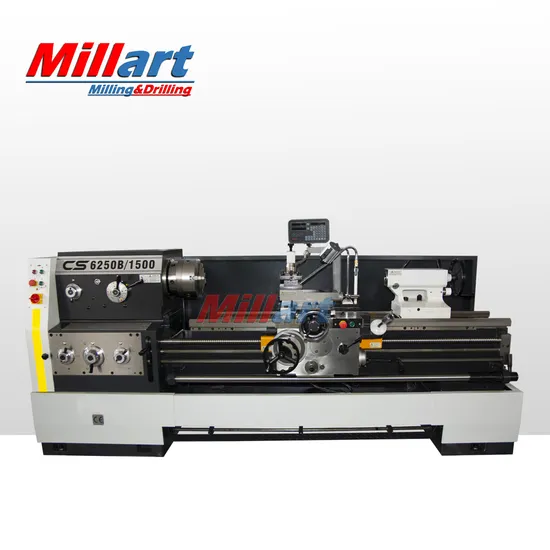

High Precision Gap Bed Lathe Machine CS6250, Metal Turning Lathe, Horizontal Lathe Machine

Product Description

Product description:

Technical parameter :
Feature :
1.Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2.Threading Inch, Metric, Module and D.P.;
3.Perform drilling, boring and groove broaching;
4.Machine all kinds of flat stocks and those in irregular shapes;
5.Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6.Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7.There are hand brake and foot brake for users to choose;
8.These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Technical parameter :

SPECIFICATIONS		UNIT	CS6250
Capacity	Max. swing dia. over bed	mm	500
	Max. swing dia.in gap	mm	710
	Max. swing dia. over slides	mm	300
	Max. workpiece length	mm	1000/1500/2000/3000
	Bed width	mm	400
Spindle	Spindle bore diameter	mm	52
	Type of spindle nose	no	ISO 702/II NO.8 com-lock type
	Spindle speed	rpm	24 steps 8-1400
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	75
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	93 kinds 0.028-6.43
	Z feed range	mm/r	93 kinds 0.012-2.73
	Metric threads	mm	48 kinds 0.5-224
	Inch threads	t.p.i	48 kinds 72-1/4
	Module threads	πmm	42 kinds 0.5-112
	Diametricpitch threads	t.p.i.π	42 kinds 56-1/4
Others	Length	mm	2800/3300/3800/4800
	Width	mm	1150
	Height	mm	1880
G.W		kg	2775/2950/3150/3800

Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Drive plate
Dead centers
Splash guard
Oil tray
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Some tools
Optional accessories:
Tapper turning attachment
Quick change tool post
Live center
Digital readout
Thread chasing dial
Chuck guard
Tool post guard
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
