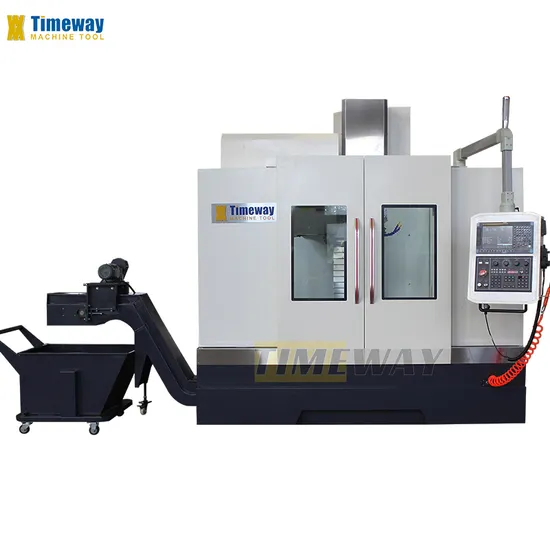

Milling Machine CNC Vertical Machining Center Vmc Series

Product Description

Vertical Machinig Center:VMC650L,VMC850L
Product Description
1. Resin sand casting;
2. X, Y rails adopts imported linear guideway; Z rails are quenching -
plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
Product Parameters

Specification	Unit	VMC650L	VMC850L
Worktable size (LxW)	mm	1000×420	1000×500
T-slot (No./width/pitch)	mm	5-18-80	5-18-100
Loading capacity	kg	400	500
Longitudinal travel (X)	mm	700	800
Cross travel (Y)	mm	450	500
Vertical travel (Z)	mm	450	500
Distance from spindle nose to table	mm	130-630	110-610
Distance from spindle center to column	mm	495	524
Spindle taper	-	BT-40 (120)	BT-40 (150)
Spindle speed	rpm	8000	8000
X/Y/Z-axis rapid feed speed	m/min	48/48/15	48/48/15
X/Y/Z-axis servo motor (FANUC)	-	β12/β12/β22	β12/β12/β22
X/Y/Z-axis positioning accuracy	mm	±0.008	±0.008
X/Y/Z-axis repositioning accuracy	mm	±0.006	±0.006
Main motor power	kw	7.5/11	7.5/11
Air pressure source	kg/cm2	6/8	6/8
Power capacity	Kva	18	20
Tool magazine capacity	T	12 (Crousel)	24 (Disc)
Guideway type	-	X/Y: Linear; Z: Sliding	X/Y: Linear; Z: Sliding
Machine weight	kg	3500	4600
Machine dimensions (LxWxH)	mm	2400×1900×2400	2800×2350×2600

*Standard configrution
Full enclosure;
Rigid tapping;
Spindle center air blast;
Work lamp;
Pilot lamp;
USB and LAN interface;
Manual pulse generator (MPG);
Centralized automatic lubrication system.
Cooling system.
Heat exchanger for electrical cabinet ;
Leveling blocks & bolts;
Toolbox and tools;
CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC,MITSUBISHI, FAGOR, etc.
*Optional configrution
The 4th axis wiring;
NC rotary table;
Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
Circular Coolant Nozzle;
Coolant through spindle (CTS);
Spindle oil cooler;
Air conditioner (A/C) for electrical cabinet;
Auto. Tool length measurement system;
Auto. Workpiece measurement systems;
Screw type chip conveyor;
Chain type chip conveyor;
High pressure water flush system;
Safety door;
Oil skimmer.
