3 Point Hitch Towable Backhoe for Tractor

Product Description

Product Description

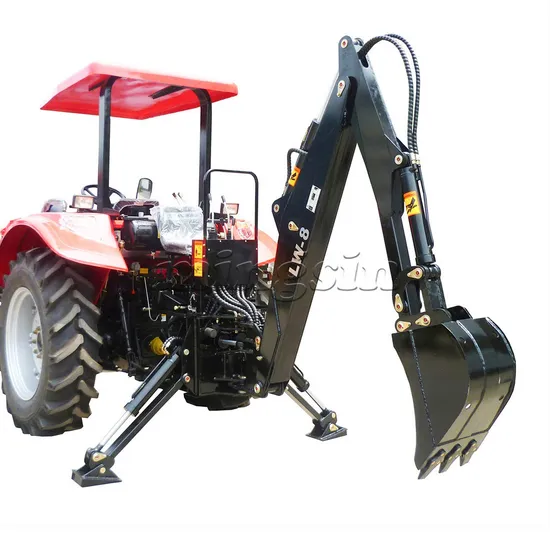

Tractor mounted LW series backhoeThe tractor backhoe consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing legs and bucket, and a control cockpit with an operator's seat. The hydraulic system of the backhoe is driven by its own hydraulic pump connected to the tractor's PTO / PTO shaft (power take-off) and has its own oil tank , thanks to which the backhoe has an independent oil system , which means that the tractor's hydraulic oil does not mix with the hydraulic oil backhoes. backhoe designed to work with a tractor. The most important features and dimensions of the LW series backhoe The LW series backhoe is a pin-mounted backhoe for a tractor with a three-point hitch ( 3 -point linkage) of the first category ( CatI ). The backhoe has its own hydraulic pump mounted on the tractor's power take-off shaft, marked CBN-F320 . The dedicated width of the bucket for the LW8 model is 400 mm with a capacity of 0.06 m3.
The LW series backhoe is a series of mini backhoes for tractors and trailed mini tractors, mounted on the three-point hitch of the tractor. The universal single-bucket backhoe for the tractor is used for all kinds of earthworks such as digging, field drainage or ditch cleaning, but it can also perform a reloading function or serve as a crane. The LW backhoe is designed for small earthworks in households and farms and is designed for tractors with a power of 15 to 180 HP (+/- 5 HP) with a digging depth of 1650 to 3655 mm. The LW 4 backhoe is available in several sizes, which allows it to be successfully used in municipal services and construction. Available sizes: LW-5 mounted tractor backhoe / minimum power 15 HP / digging depth 1650 mm / weight 360 kg, LW-6 mounted tractor backhoe / minimum power 20 HP / digging depth 2000 mm / weight 550 kg, LW-7 mounted tractor backhoe / minimum power 30 HP / digging depth 2400 mm / weight 560 kg, LW-8 mounted tractor backhoe / minimum power 50 HP / digging depth 2800 mm / weight 630 kg, LW-10 mounted tractor backhoe / minimum power 70 HP / digging depth 3200 mm / weight 800 kg, LW-12 mounted tractor backhoe / minimum power 100 HP / digging depth 3655 mm / weight 1500 kg. Detailed Photos
Product Parameters

Model	LW-5	LW-6	LW-7	LW-8	LW-10	LW-12
Matching Tractor (hp)	15-20	20-30	30-50	50-80	80-120	120-40
Max. Digging Depth ()	1650	1700	2100	2600	3000	3600
Max. Unloading Height (mm)	1700	1700	2300	2500	2700	3200
Max. Digging Height (mm)	2600	2700	3300	3400	3900	4500
Max. Digging Depth Flat Bottom (mm)	1530	1600	2000	2500	2900	3500
Max. Swing Angle (°)	180	180	180	180	180	180
Bucket Rotation Angle (°)	160	160	160	160	174	174
Bucket Capacity (m3 )	0.03	0.03	0.048	0.06	0.08	0.2
Weight (kg)	360	450	500	540	900	1050
