Efficient Bending Press Brake with 3+1 Axis CNC Control System

Product Description

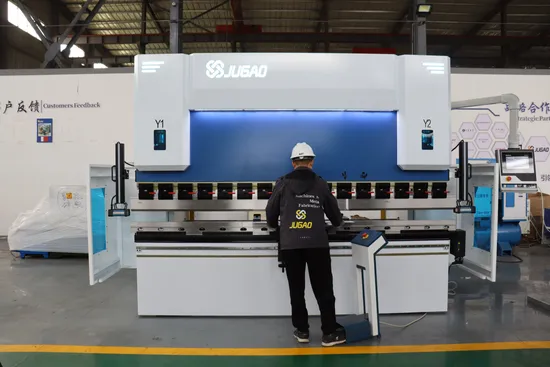

Introducing the Hydraulic Sheet Metal Bending Machine: The CNC Hydraulic Press Brake Machine, now enhanced with the cutting-edge DA-53T Controller for unparalleled performance.
Experience next-level efficiency with the new compact DA-53T, a marvel in synchronized press brake control solutions featuring advanced touch control. This intuitive system offers seamless CNC programming via the Delem graphical touch screen interface. Designed to control up to 4 axes, this versatile panel can be fitted in cabinets or in an optional pendulant arm housing. Marvel at the 10.1" wide screen with high-resolution color TFT, equipped with industrial-grade multi-touch technology, ensuring smooth navigation through product programming and actual production. Smart ergonomics are at your fingertips, with functions strategically placed for optimal ease of use.
1. Multilingual CNC operating system ensures global usability and adaptability.
2. Experience the serenity of operation with a silent and reliable internal gear pump, designed for enhanced work environments.
3. State-of-the-art hydraulic system precision-engineered and regulated by proportional valves for optimal performance.
4. A sophisticated blend of brushless drive and motor with 'can open' digital technology delivers a high-precision backgauge, enabling rapid axis movements for superior efficiency.
5. Achieve immaculate precision with high-grade optical lines enhancing operational accuracy.
6. Adjustable clampings provide flexibility and ease of customization for diverse applications.
7. Hardened and grinded tools, coupled with ergonomic clamps, facilitate quick tool adjustments for seamless operation.
8. Complete backgauge fingers glide on a double linear guide for impeccable positioning accuracy.
9. Stainless steel front supports, adjustable in height, offer robust support and flexibility.
10. The automatic mechanical crowning feature ensures consistent results with minimal manual intervention.
11. Electrical panel crafted with high-quality components guarantees reliability and durability.
12. European safety standards-compliant Start&Stop system ensures seamless integration of safety and performance.
The DA-53T touch CNC control system stands as a beacon of modernity and versatility, adeptly supporting a wide array of press brake applications while maintaining impeccable machine functionality.
1. 10.1" high-resolution color TFT screen offers a crystal-clear display for an enhanced visual experience.
2. Revolutionary 'hot-key' touch navigation for swift and intuitive user interaction.
3. Control capabilities extend to 4 axes (Y1, Y2 + 2 auxiliary axes), providing comprehensive operational control.
4. An extensive library of tools, materials, and products at your disposal for streamlined operations.
5. Advanced Y-axis control algorithms cater to both closed-loop and open-loop valves, ensuring precision and adaptability.
6. CNC Crowning control ensures consistent precision across various operations.
7. USB memory stick interfacing enables easy data management and transfer.
8. Profile-53TL offline software offers robust programming and simulation capabilities for enhanced productivity.
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
