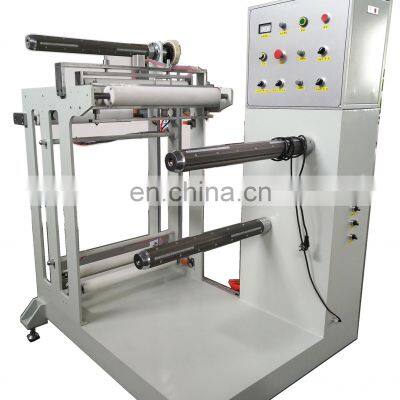

| Unwinder 1.Max unwind width:350mm 2.Maximum unwind diameter:350mm 3.Unwind core diameter:3" 4.Top and bottom rewind shaft diameter:3" 5.Max rewind width for top and bottom roller:350mm 6.Max rewind diameter for top and bottom roller:350mm 7.Max rewind roll weight for top and bottom roller:30kg 8.With unwind&rewind mandrel inflatable 9.Max unwind roll weight:30kg 10.Tension can be adjustable,controled by torque motor | Rewinder 1.Rewinder width:350mm 2.Maximum rewind diameter:350mm 3.Rewind core diameter:3" 4.With rewind mandrel inflatable
5.Max rewind roll weight:30kg 6.With rectification. 7.With servo motor meter length count. 8.With magnetic powder control tension. 9.Precision of the rectification:±0.2mm
|
