Basic Info.
Model NO.
SAE J30R7 Fuel Hose
Reinforcement
High Tensile Polyester Fiber Braided.
Product Name
Flexible Fuel Resistant Low Pressure NBR Fuel Hose
Keyword
SAE J30r7 Fuel Hose
Length
in Rolls or Cut Into Customized Length
Package
Well Packed by Braided Strips
Application
for Automotive
Transport Package
Transparent OPP Film
Specification
CE, ISO, ROHS, TUV
Production Capacity
400000meters Per Month
Product Description

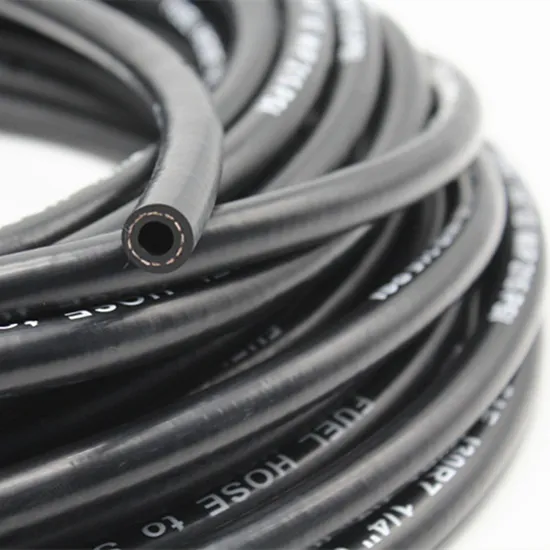

Flexible Fuel Resistant Low Pressure NBR Fuel Hose for Automotive meets SAE J30R7
Construction: Tube: Fuel Resistant Inner Tube
Reinforcement: High tensile polyester fiber braided.
Cover: Fuel Resistant Outer Tube
Temperature: -35ºC to +100ºC
Standard Color: Black
Application:
For use with gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel system or in the crankcase of internal combustion engines in mobile, stationary, and marine applications.
Standard length: 100m.
Specification:
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| 3/16" | 5 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.028 | 0.15 |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.031 | 0.17 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.035 | 0.22 |
| 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.044 | 0.24 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 0.076 | 0.42 |
| 5/8" | 16 | 24 | 20 | 300 | 60 | 900 | 100 | 0.085 | 0.45 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 100 | 0.089 | 0.70 |
| 1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 | 0.102 | 0.85 |
Test Report:
>>
