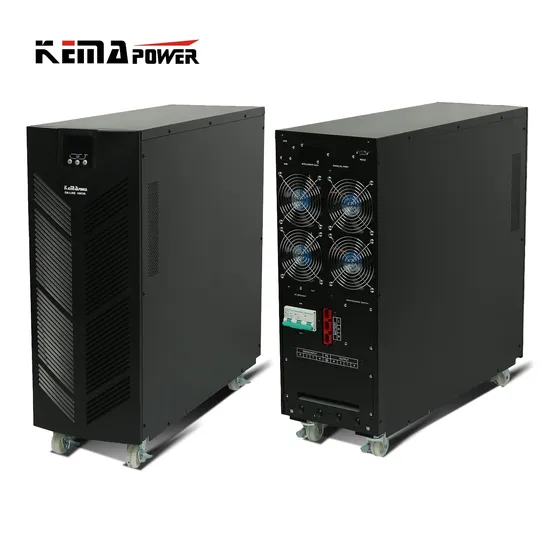

High Frequency Online UPS 10kVA 20kVA 30kVA 40kVA Pure Sine Wave Uninterruptible Power Supply Online UPS

Product Description

High Frequency Three Phase Online UPS
33XG10-40KVA
KEY FEATURESLCD High Frequency Double Conversion Sine Wave Online UPS 10-40KVADSP digital control technology, Zero transfer time Three phase sine wave, output Power Factor 0.9 Wide input voltage range 274-478VWide input Frequency 40-60Hz(50Hz)/50-70Hz(60Hz) , support Generator, output HZ be fixed or follow mainsAdvanced Input PFC technology, 0.99Full protection, overload, over voltage, short circuit, over temperature etc.Adaptive Load Management Generator compatibleRS232 communication with monitoring software, optionalEPO, SNMP optional, PRC10-40K Option TECHNICAL SPECIFICATIONS

Model		33XG10KS	33XG10K	33XG20KS	33XG20K	33XG30KS	33XG40KS
Capacity		10KVA/9KW		20KVA/18KW		30KVA/27KW	40KVA/36KW
Input	Voltage	3PH+N+G, 380V
	Voltage Range	(274-478) VAC (Full load)
	Breaker	32A		50A		60A	80A
	Frequency	40~60Hz (50Hz ) /50~70Hz (60Hz)
	Factor	> 0.99
Output	Voltage	Ph to N, 220V200/208/220/230/240VAC (1±1%),adjusted by software. 10% derating for 208VAC/200VAC.
	Current	15A		30A		45A	61A
	Factor	0.9
	Frequency	Line Mode (1) synchronized 46~ 54Hz;
		Line Mode (2) 50Hz (line 40~ 46 or 54~ 60Hz);
		Bat mode: 50Hz. ( 60HZ for Choice )
	Distortion	THD < 3% (R full load)
	Overload Capacity	105% - 125% transfers to bypass mode after 1 minutes; 125% ± 5%< load ≤ 150% ± 5% transfers to bypass mode after 30 second
	Current Crest Ratio	3:1
Efficiency		Line: ≥ 93%, Bat: ≥ 90%
Communication		RS232 with softwave and Canble. SNMP Optoion
Rated Bat No.		192(240)VDC	16(20)*7Ah	192(240)VDC	16(20)*7Ah	±192(240)VDC
Charge Current		5A	1A	7.5A	1A	10A	10A
ECO/EPO		Optional
Short Circuit Protection		YES
Working Temperature		0ºC~40ºC
Altitude		<1000m
Audible Noise		≤60dB
Storage Temperature		-15ºC~45ºC
Work Humidity		20%~95%
Noise (dB)		≤ 60dB
Dimension(L*W*H) mm		533x260x501	717x260x710
Weight (kg)		26	83.5	50	98	58.5	60

PRODUCT DISPLAY10-40KVA BACK VIEW
1. EPO Emergency shutdown switch
2. SNMP card
3. Parallel board install position
4. RS232 communication interface
5. FAN
6. RJ45
7. Input breaker
8. Battery connect position
9. Wiring installation
10. Terminal block
11. Wheel
10-40K Display Panel

---
