| Negotiable | 1 Set (MOQ) |

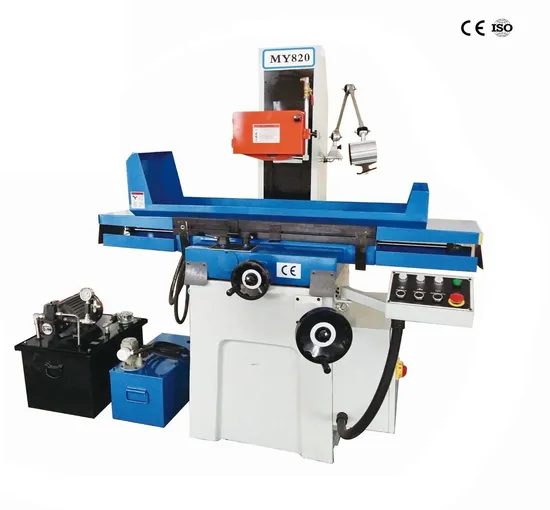

| Manual Surface Grinding Machine |
| Specifications | MY820 | |
| Table Size (LxW) | 480x200mm | |
| Max movement of working table (LxW) | 530x220mm | |
| T-Slot number×width | 1x14mm | |
| Max distance from spindle center to table surface | 450mm | |
| Wheel size (Outer diameterxWidthxInner diameter) | 200x20x31.75mm | |
| Wheel speed | 50HZ | 2850r/min |
| 60HZ | 3440r/min | |
| Longitudinal speed of working table | 3-20m/min | |
| Vertical feed on handwheel | Per revolution | 2.5mm |
| Per graduation | 0.02mm | |
| Cross feed on handwheel | Per revolution | 1.25mm |
| Per graduation | 0.01mm | |
| Spindle motor | 1.1KW | |
| Coolant pump motor | 40W | |
| Hydraulic motor | 1.5KW | |
| Working pressure | 3Mpa | |
| Oil tank capacity | 80L | |
| Max flow | 18L/min | |
| The parallelism of working surface to base level | 300:0.005mm | |
| Surface roughness | Ra0.32μm | |
| N.W./G.W. | 850/950kg | |
| Packing size | 163x117x194cm | |
