High Quality Hffs Fully Automatic Pouch Packaging Machine for Granular/Sweet/Sugar

Product Description

Product Parameters

Specifications of pouch	Model	RT-210G	RT-240G	RT-330G	RT-260GS	RT-330GS
	Specifications of pouch	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape
	Material	Composite bags or heat sealing materials	Composite bags or heat sealing materials	Composite bags or heat sealing materials	Composite bags or heat sealing materials	Composite bags or heat sealing materials
	Min.Dimension	90*95*25mm	120*130*25mm	150*200*25mm	90mm*140mm	150mm*150mm
	Max.Dimension	210*300*50mm	240mm*320mm*50mm	310mm*480mm*60mm	240mm*320mm	310mm*480mm
	Max.Filling volume	1000ml	1500ml	2000ml	1800ml	3000ml
	Capacity	30-50pcs/min	30-50pcs/min	30-50pcs/min	30-60pcs/min	30-45pcs/min
	Quantity out per batch	2	2	2	1	1
Motion drive		Cam drive	Cam drive	Cam drive	Servo motor drive	Servo motor drive
Operation parameters	Power	3.5kw	3.5kw	5.5kw	9.5kw	10kw
	Operation pressure	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa
	Gas consumption	0.7m3/min	0.7m3/min	0.7m3/min	0.7m3/min	0.7m3/min
	Voltage	AC380V, 50Hz	AC380V, 50Hz	AC380V, 50Hz	AC380V, 50Hz	AC380V, 50Hz
	Decibel	<75dB	<75dB	<75dB	<75dB	<75dB
Machine parameters	Dimensions(L*W*H)	3100mm*1100mm*1550mm	3300*1100mm*1550mm	3700mm*1200mm*1550mm	3800mm*1200mm*1550mm	4700mm*1400mm*1550mm
	Weight	2200kg	2500kg	3000kg	4500kg	5500kg

Specifications of pouch	Model	RT-420GS	RD-200SF	RD-300SF	RD-400SF	RD-600SF
	Specifications of pouch	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape	Stand-up pouch/with zipper/in irregular shape
	Material	Composite bags or heat sealing materials	Composite bags or heat sealing materials	Composite bags or heat sealing materials	Composite bags or heat sealing materials	Composite bags or heat sealing materials
	Min.Dimension	160mm*200mm	60mm*130mm	90mm*140mm	100mm*160mm	120mm*180mm
	Max.Dimension	400mm*500mm	90mm*220mm	140mm*250mm	190mm*300mm	240mm*320mm
	Max.Filling volume	5000ml	100ml	1500ml	1500ml	100ml
	Capacity	20-35pcs/min	60-80pcs/min	60-80pcs/min	60-80pcs/min	60-80pcs/min
	Quantity out per batch	1	2	2	2	2
Motion drive		Servo motor drive	Servo motor drive	Servo motor drive	Servo motor drive	Servo motor drive
Operation parameters	Power	10.5kw	4.5kw	10kw	10kw	15kw
	Operation pressure	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa
	Gas consumption	0.7m3/min	0.7m3/min	0.7m3/min	0.7m3/min	0.7m3/min
	Voltage	AC380V, 50Hz	AC380V, 50Hz	AC380V, 50Hz	AC380V, 50Hz	AC380V,50Hz
	Decibel	<75dB	<75dB	<75dB	<75dB	<75dB
Machine parameters	Dimensions(L*W*H)	5300mm*1400mm*1550mm	3230mm*1400mm*1550mm	4700mm*1200mm*1550mm	4900mm*1200mm*1550mm	5800mm*1200mm*1550mm
	Weight	6500kg	2200kg	3500kg	5000kg	6500kg

Configuration of machine 1. SIEMENS or INOVANCE full servo motor motion control system. 2. Remote Module. 3. 304 Stainless Steel Rack. 4. Individual film releasing rack. 5. Ultraviolet sterilization system. 6. Stand-up pouches, three or four side seal. 7. Self-lubricating bearings from Germany. 8. Standard scissor module (die-cutting unit optional). 9. 12" Siemens mobile touch screen parts laser marking. 10. Self-lubricating system,Spare parts maintenance reminder. 11. Remote Service Function. 12. Safety door system. 13. Chassis with built-in LED light. 14. Bag exhaust device. 15. Water-cooling system. 16. Nitrogen flushing statino Nitrogen dosing station 17. Double heat sealing system Double cooling system

Product Description
Automatic pouch packaging machine
The RT-420GS fully automatic pouch packaging machine uses thermal composite materials to package liquid, granule,powder and other contents measured in units. This equipment can produce various bag types, including three side sealing, four side sealing, stand-up bags, irregular bags, irregular stand-up bags, stand-up bags with zipper and stand-up bags with spout. It can complete the process from bag feeding, filling, sealing to finished product punching and cutting before being transported to the outside of the machine.
Our Advantages

Advantages 1. A tech-leading pouch manufacturer in the market. 2. Reputation of extremely stable performance . 3. Full expertise of pouch filling technology. 4. Strict production management and project management. 5. 7/24 remote service support. 6. Management with SAP, ERP and CRM system. 7. Local spare parts storage.

Detailed Photos

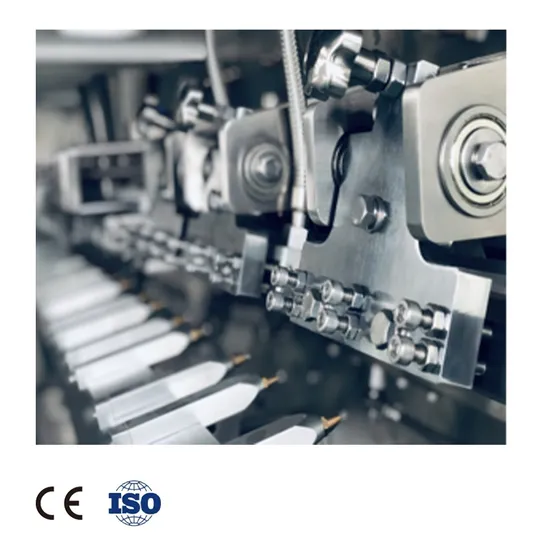

Details of the machine
After Sales Service
Our service
1.We have a dedicated customer service staff to call back from time to time and guarantee 1-2 visits per year by our offline after-sales engineers.
24 hours at any time to provide customers with online remote service, offline with seven experienced mechanical and electrical engineers.
We have 5 years of parts in stock for any unit we sell. We guarantee that every part of every machine is individually coded. We guarantee that each customer has an individual database of all equipment sold with traceability.

Technical documents
The technical documents need be handed over with the delivery including Packing list Equipment instructions Operation/maintenance manual Electrical schematic diagram
Installation & Commissioning
A) After the equipment arrives at the Buyer's workshop, the Buyer does unpack, the installation, commissioning and trial production of the equipment within Buyer's own packer. During the installation and commissioning, the Supplier is responsible for corresponding spare parts.
B) Training
The Supplier is responsible for technical training. The training contents includes equipment structure and maintenance, equipment control and operation. The training shall be carried out on line or on Supplier's plant. The Supplier will assign qualified technicians to guide and prepare training programs,
Company Profile
Brief enterprise honor
We have obtained the honor of national high-tech enterprises, dozens of inventions and utility patents, and an increase of more than a dozen patents every year.At the same time, we also obtained the Chinese intellectual property certification, CE certification, and the honorary title of innovative technology company.
About our company
Shanghai Rotypack Equipment Co.,Ltd
Our Factory
Shanghai Rotypack Equipment Co.,Ltd
Our exhibition
Shanghai Rotypack Equipment Co.,Ltd
Transportation support
Shanghai Rotypack Equipment Co.,Ltd

---
