Remote Meter Reading Cold / Hot Waterflow Meter

Product Description

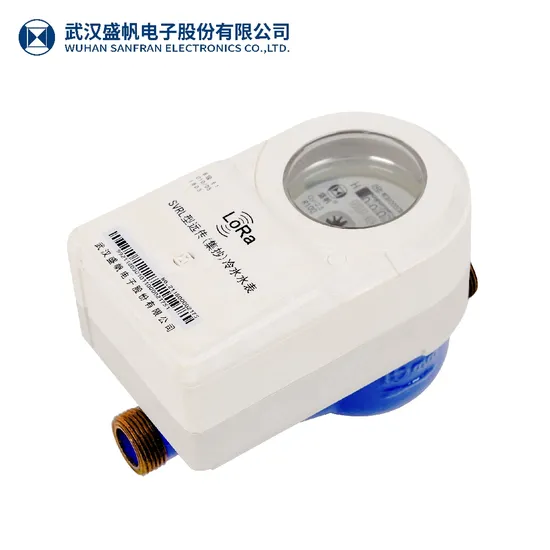

SVRL Remote Transmission (Meter reading) Cold Water Meter
Introduction:
SVRL/R Photoelectric Direct Reading Remote Water Meter is a cold and hot water metering device with intelligent signaling. It is based on a common wet or dry water meter, and is equipped with an intelligent photoelectric sensor to statically identify the displayed value of the water meter counting device, and upload the value to the collecting device through the signal line. The water meter does not need to work continuously with electricity at ordinary times, only the power provided by the bus at the moment of reading the meter. It is applicable to residential apartments, commercial buildings and other occasions where water metering and charging are performed by households.
The product performance index conforms to GB/T778-2018.
Functions and Features: (★Basic function☆Optional function)

★Intelligent photoelectric sensor, passive design	★Protection grade IP68
★Anti-magnetic interference	★Remote meter reading
★Photoelectric direct reading	☆Base meter all copper structure
☆Remote valve control

Specification:

Model size	SVRL/R-15-200
Measurement range ratio(Q3/Q1)	R=80,100,160
Working temperature	Cold water meter: 0.1~30ºC; Hot water meter 0.1~90ºC;
Pressure loss	<0.063MPa
Minimum allowable working pressure	0.03MPa
Maximum working pressure	1.0MPa
Pressure loss grade	△P63
Climate and mechanical environment safety grade	B
Electromagnetic Compatibility	E1
Service life	>6 years
Accuracy class	Class 2
Communication method	M-BUS(RS-485 can be optional)

Flow-rate parameter (R=100)

Nominal diameter (mm)	DN 15	DN 20	DN25
Dimension (mm)	165 x 91 x 350	195 x 91 x135	225 x 91 x135
Permanent flow-rate Q3(m3/h)	2.5	4.0	6.3
Minimum flow-rate Q1(m3/h)	0.025	0.04	0.063
Transitional flow-rate Q2(m3/h)	0.04	0.064	0.1008
Overload flow-rate Q4(m3/h)	3.125	5.0	7.875

Company introduction:
WUHAN SANFRAN ELECTRONICS CO.,LTD. is a professional manufacturer and supplier of water, electricity, gas, heat and energy efficiency management solution which was founded in 1998. The company covers an area of about 30 acres, 3,000 square meters of factory buildings have been built, main products including: electric energy meter, water meter, gas meter and management platform. In 2014, it was assessed as the key high-tech enterprise of National Torch Plan. In the recent tenders of power grid, the company's total number of winning bids ranked in the top eight. The amount of annual order reaches 700 million RMB. After-sales service agencies cover 31 provinces and cities.
Under the business philosophy of "Focus, Innovation, Quality, Fair and Competent ", SANFRAN has been committed to researching solutions for smart energy meters and the extended products for more than 20 years, and has successively developed more than 100 kinds of smart energy meter with low-power consumption, long lifetime, multi-mode communication. The low-power consumption energy meter developed by SANFRAN reduced the power consumption of single-phase energy meters to 0.25W, three-phase energy meters to 0.15W (both are about 45% of the power consumption among similar electric energy meters). Since 2009, there were more than 30,000,000 low-power consumption meters running which save a lot of energy for the country. The company has accumulated to obtain national patents and software copyrights more than 200 items(including more than 35 invention patents). The single phase integrated smart prepayment meter project with low-power consumption based on switching mode power supply won the 21st Nation Invention Gold Award in 2015. And because of this, it was awarded with "Climate Solver" by WWF in 2014. There are only five companies to receive this honor. Starting from 2018, the key research direction of SANFRAN focus on the further application of big data of smart energy meter.

---
