Product Details
Product Description
Product Description
Quick DetailsPlace of Origin:Liaoning, China
Brand Name:GCAN
Model Number:USBCAN-I Pro
Size (LxWxH):95 x 58 x 24 mm
Weight:Approx.90g
Working temperature:-40~ 85℃
Humidity:15 to 95%non-condensing
CAN channel:1
CAN connector:Open 4-pin terminal block
Computer interface:USB1.1, USB2.0, USB3.0
Baud rate:5Kbps~1Mbps
USB interface:USB 2.0, compatible with USB 1.1 and USB 3.0
Electric isolation, insulation level:DC3000V
Packaging & DeliverySelling Units:Single item
Single package size: 25X15X5 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
| Quantity(sets) | 1 - 500 | >500 |
| Est. Time(days) | 7 | To be negotiated
|

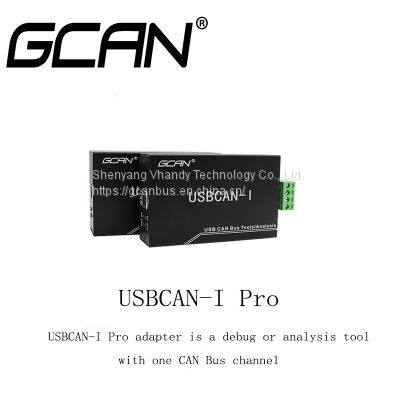

USBCAN-I pro adapter is a analysis tool for CAN bus which can build connection between PC and CAN network. It can make CAN data visibility with ECANtools software and realize CAN data transmit/receive and other functions. If user want to develop application program, GCAN provides the application demo code, including VC, VB,.net, Delphi, Labview and C++Builder and other development routine.
item
| Value
|
Operating temperature
| ’-45 to 85 ℃
|
The shell material
| Aluminum alloy
|
CAN channel number
| Single
|
Voltage supply
| USB supply
|
Working voltage
| 5V
|
Current
| 200mA max
|
Isolation voltage
| Magnetic isolation of 3000V
|
Support system
| Windows XP,7,8,10,LINUX
|
Development environment
| VC VB C C+ C++ Builder NET Labwindows Delphi LabVIEW
|
Baud rate
| 5Kbps-1Mbps
|
Transfer speed
| Send up to 8000 frames/s and receive up to 14000 frames/s
|
Execution standard
| Support CAN 2.0A CAN2.0B conform to ISO/DIS11898
|
Software
| Support ECAN Tools software
|
Size
| 95mm*58mm*24mm
|
Typical applications✔Test CAN-Bus network or device;
✔Automotive electronics development;
✔Automotive data decoding tool;
✔Electrical system communication test;
✔Analysis of Vehicle Fault Diagnosis;
✔ECU data simulation;
✔Listen all CAN-Bus communication.
