Advanced Zmde Steel Plate Drilling System for H Beam Channels

Product Description

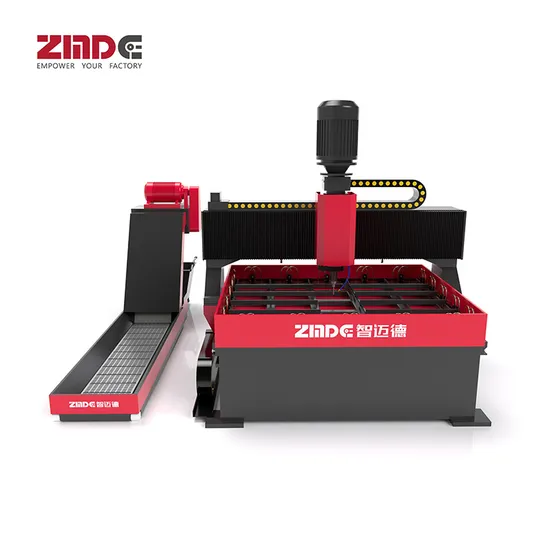

ZMDE Automated Industrial Steel Plate Drilling System H Beam Channel Drilling Machine

>Cost-effective equipment <
1. Crafted from robust materials, our equipment ensures minimal failure rates, significantly cutting down maintenance costs. All critical components such as ball screws, linear guides, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from industry-renowned brands.
2. Enjoy the convenience of CRT display automatic chip removal, drastically reducing manual cleaning time and costs.
3. With exceptional precision, this equipment delivers a high qualification rate for workpieces, therefore minimizing the cost of consumables.
>Simple operation, High productivity <
1. The intuitive human-machine interface is clear and visual, allowing for the seamless generation of automatic machining programs.
2. Our system is controlled by CNC and PLC, ensuring pinpoint accuracy in positioning.
3. Equipped with hydraulic clamps for the workpieces, operators can effortlessly control the process via a foot switch, making the operation both convenient and labor-saving.
4. Featuring 12 fast hydraulic clamps distributed around the table, this machine can clamp up to four groups of workpieces simultaneously.
5. Small workpieces can be efficiently clamped at the four corners of the working table, significantly reducing production preparation cycles and boosting production efficiency.
6. For small workpieces, clamping at the table's corners allows for shorter production preparation periods, thereby enhancing overall production efficiency.
> Guaranteed quality, wide range of applications <
1. Critical components such as the gantry, column, and table are made from solid materials, resulting in a main machine weight of up to 6300kg, ensuring durability and stability.
2. This versatile system is essential for connecting plate processing across a wide range of industries.
3. Accommodates a broad spectrum of drilling diameters, ranging from 12mm to 50mm, catering to diverse application needs.
> Suitable for various production scenarios <
1. Ideal for continuous production of multiple batches of a single flat type workpiece, ensuring consistent output.
2. Perfect for small batch productions involving multiple species of workpieces. It can process plates of various shapes, including rectangular, round flange, and polygonal. It can also handle two or four different specifications of plates simultaneously.
3. Capable of producing multiple layers of thinner sheets in stacks, with a maximum stack height of 100mm for drilled holes.
4. The upper computer software autonomously processes start and end points, facilitating both through holes and blind holes, step holes, and end hole chamfering.
> Production process automation <
1. Achieve seamless line board integration and a high degree of automation with automatic positioning according to the drilling program.
2. The system adjusts the optimal feeding volume based on different hole diameters, ensuring precise and efficient drilling.
3. Capable of automatic and continuous processing of large hole diameters, allowing for one-time processing and forming.
4. Includes an automatic chip removal function, ensuring a clean and hassle-free operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
