Cassman SUS304 8000L Beer Fermenters for Sale

Product Description

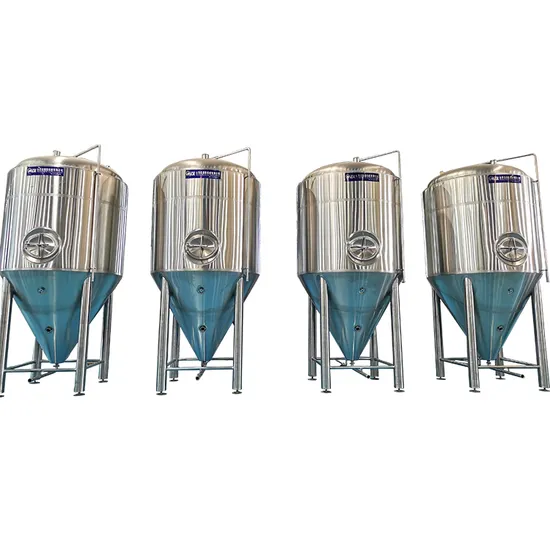

Cassman SUS304 8000L beer fermenters for sale
All fermentation tanks are made by SUS304 stainless steel, which meet domestic and international food safety and hygiene standards.

Cassman 8000L standard fermentation tank configuration
Net capacity:8000L
25% head space
Interior thickness=3mm Exterior thickness=2mm
100% TIG welding with pure argon gas shield
Interior tank: Pickling passivation+Exterior Oil brushed finish 2B
Insulation: Polyurethane, TH = 80mm
Domed top cover+ 60°cone bottom
Glycol jacket: dimpled plate on cone & side
Test pressure 3 bar, working pressure 1.5 bar
PT100 temperature sensor & digital temperature gauge
Complete butterfly valves, fittings and parts as below:
• 2pcs x Lifting ear
• 1pcs x Dry hopping
• 1pcs x PRV( Pressure release valve)
• 1pcs x Pressure gauge
• 1pcs x Spunding valve
• 1pcs x Sample valve
• 1pcs x Temperature gauge
• 1pcs x Carbonation stone
• 1pcs x Racking arm
• 1pcs x CIP spray device
• 1pcs x Drain outlet
• 2 pcs x Solenoid valve
• 4 Heavy duty legs with leveling pad
Cassman 1000L standard configuration

Brewing System	Components	Capacity	Specification
Grinding System	Miller	500KG/H	Stainless steel, Double Roller, Noise<40db
Brewhouse System	Mash/Lauter tun	1000L	Mashing with mixing system False bottom support at the bottom of the tank Full glass top manway Heating way: Steam, Electric, Gas Material:SUS304/Red copper Interior:3 mm Exteior:2 mm Insulation: 80mm
	Brew Kettle/ Whirlpool Tank	1000L
Fermentation System	Fermentation Tank	1000L/2000L	Side manway Test pressure 3 bar, working pressure 2 bar Interior:3 mm Exteior:2 mm Lifting ear Dry hopping PRV( Pressure release valve) Pressure gauge Spunding valve Sample valve Temperature gauge Carbonation stone Racking arm CIP spray device Drain outlet Solenoid valve 4 adjustable legs
Cooling System	Glycol Water tank	2000l	SUS 304 Insulation: 80mm With level gauge
	Chiller	5HP	Refrigerant: FreonR407C
CIP System	Sterilization tank	100L	working capacity: 100L; Inner tank thickness: 1.5mm; Light-banded welding line; Power: 2kw With valves and accessories
	Alkali Tank	100L
	Pump	3T/h
Control System	Control Cabinet	Manual/PLC/ HMI	Manual/Semi-automatic/Automatic
Optional	Auger System
	Grist Case
	Grist Hydrator
	Customized

More details

About Cassman
Jinan Cassman Machinery Co., Ltd. is located in Jinan City, Shandong Province, the factory covers an area of 5,000 square meters, with three workshops of S/S vessels processing, Welding & Assembly, and commissioning.
Equipped with advanced CNC machine, Argon gas welding machine, stainless steel bending machine, pressure vessel detector, etc., Approved by CE,TUV and ISO certifications. We have a technical team with tanks design, brewing consultant, electrician and installation engineers.
Cassman focus on the brewing technology research, design and manufacture.
We provide home brew equipment(50L-100L), craft brewing equipment(200L-3000L) and industrial brewery equipment(1000L-20000L), which included the malt milling, brew house system, beer fermentation/servicing tank, cold/hot liquor system, packaging line and control system.
Our after sales service including the installation and brewing technology transfer.

CASSMAN-Certificate

Our service
Warranty:
Equipment warranty includes tank warranty, electric parts warranty, auxiliary parts warranty, etc. .
1, Cassman provides 3-5 years warranty for the main tank, 1 year warranty for electrical components and auxiliary parts, etc., and lifetime after-sales service.
2, In order to ensure the normal operation of the brewery, we can provide a separate set of spare parts according to the customer's request, customers can replace parts in case of abrasion damage.
Maintenance:
During operation, daily maintenance for the equipment is important. Cassman will provide maintenance guide., if need, we can send engineer to customer's site for repair and maintenance.
Beer equipment model selection:
1, Based on years of experience, Cassman can provide standard models of beer brewing equipment. We have mature experience in brewing technology and equipment design.
2, Cassman can provide custom-made service as per customer's requirement. including customize brewhouse system, fermentation tank, brite beer tank, coffee equipment, whiskey distillation equipment, stainless steel tank, etc.
Brewery design:
Cassman can help to design layout for newly built brewery, and we will supply P&ID drawings, electrical connection diagrams,flow chart, tank drawings, etc. , 3D drawings are also available if needs.
Installation:
Cassman has 6 to 8 experienced technical engineers, we can provide on-site installation and debugging instruction as per customer's needs.
1, To ensure good after-sales service, we will appoint the same technical personnel to debug and load the equipment before delivery,
2, For single tank, if on-site installation service is unnecessary, Cassman will provide equipment drawings and installation guides so that customers can install by themselves.

---
