X6330 Automatic Power Feed Vertical Turret Milling Machine Supplier

US$7,500.00
1-4 Sets
US$6,500.00
5+ Sets

Basic Info.

Model NO.
X6330
Type
Tool Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Taiwan Turret Milling Head ISO40 Spindle Milling M
Model
X6330
Table Size
305*1370mm, 305*1500mm
Spindle Taper
ISO30
Spindle Speed
65-4500rpm
Spindle Motor Power
3.7kw 5HP
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
RAM Travel
500mm
Color
Blue and White
Key Word 1
Milling Machine for Metal
Key Word 2
Turret Milling Machine
Key Word 3
China Milling Machine
Spindle Travel
127mm
Transport Package
Wooden Pallet
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg

Product Description

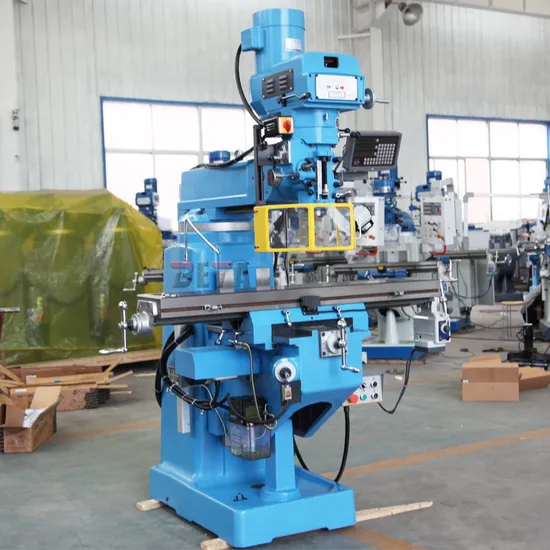

X6330 Taiwan Turret 5HP Milling Head ISO40 Spindle Milling Machine
Item / Model Unit X6330 X6330A
Table size mm 305×1370(12"×54")
T slot No.and size 3 × 16
Long travel mm 870 , 1000
Cross travel mm 360
Vertical travel mm 380
Distance from horizontal spindle to table mm 0-350
Ram travel mm 500
Spindle taper (standard):ISO40
Spindle travel mm 127
Spindle speed rpm (standard):(shiftgrade) 50HZ65-4500 60HZ:80-5440
(optional):(variable)65-3750
Auto.quill feed (threesteps):0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor power kw 3.7 kw/5HP
Head swivel ° 90°
Head tilting ° 45° FIX
Dimension of package mm One milling machine on one pallet 1566x1650x2080
Two milling machine on one pallet 1720x1800x2175
G.W/set kg 1630 1650
