Product Description
Product Description

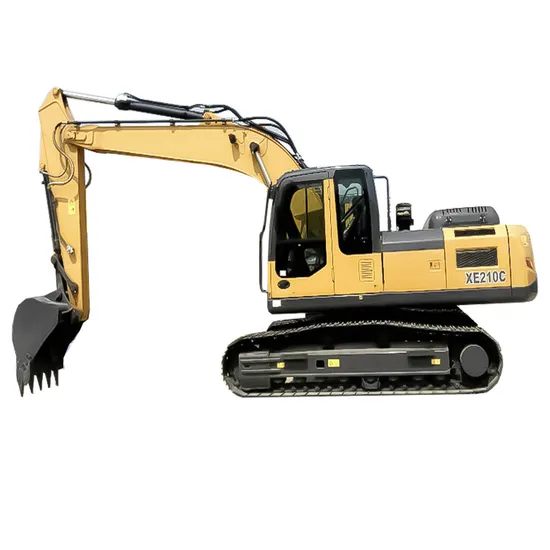

XE210U is suitable for complex earth and rock working conditions.With Cummin powerful engine, which is enengy-efficient and matched the best fuel economy adjustment,the efficiency of this engine can be greatly improved. The main valve of the main pump adopts impported original parts,which ensures the reliablity and durability of the product.This excavator is mainly used in road,municipal and other light urbanization open-air operations.
Product Parameters
| SPECIFICATION OF XE210U 21T CRAWLER CRANE |
| Item | Unit | Parameter Value |
| Model | - | XE210U |
| | | |
| Operation Performance Parameter | | |
| Operating weight | kg | 21000-23000 |
| Bucket Capacity | m3 | 0.9-1.2 |
| Bucket digging force | kN | 149 |
| Arm digging force | kN | 111 |
| | | |
| Engine Parameter | | |
| Model | - | Cummin QSB6.7 |
| Engine Rated power/speed | kw/rpm | 129/2100 |
| Maximum torque/speed | N.m | 800/1500 |
| Displacement | L | 6.7 |
| | | |
| Dimension Parameter | | |
| Crane Full Dimension(L×W×H) | mm | 3560×1240×2350 |
| Length of boom | mm | 1690 |
| Length of arm | mm | 1100 |
| Track length | mm | 1578 |
| | | |
| Speed Parameter | | |
| Travel speed(H/L) | km/h | 5.6/3.5 |
| Gradeability | ° | 30 |
| Swing speed | r/min | 11.8 |
Detailed Photos
Company Profile
HOKA VEHICLE is located in Shanghai, which is a financial, trade and shipping center in China. All these give our company an obvious superiority in trade, transportation and material flow.
With the professional team, first class design, production experience and market capacity, HOKA VEHICLE has exported and delivered more than 5, 000 units Construction Machinery to countries across Africa Middle East, Southeast Asia and South America.Our main products cover more than 11 series, ranging from Hoisting Machinery, Building Machinery, Earthmoving Machinery, Concrete Machinery,Road Machinery,Logistics Machinery, Trucks, Drilling Machinery, Mining Machinery and all other kinds of Construction Machinery.
Our Factory
Our Parts Warehouse
Our Products
Our Successful Cases
>>
