Product Description
Product Description

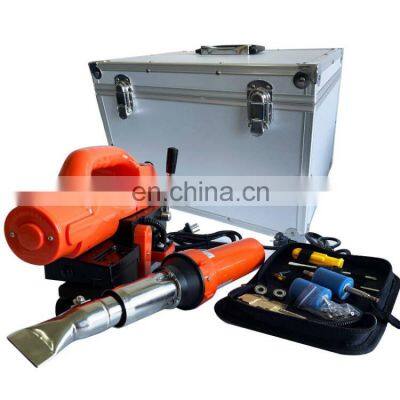

Products DescriptionPortable Automatic Plastic HDPE Geomembrane Drain Board Welding Machine Plastic Welder for Geomembrane Fish Farm Pond Liner Geomembrane welding machine is our new developed products, which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.Technical specifications:ModelDZ-RT100DZ-RT150DZ-RT200Voltage/frequency220V/50HZ1100W/1300W1100W/1300WPower1100W/1300W1100W/1300W1100W/1300WWelding speed0-5M/min0-5M/min0-5M/minHeating temperature0-450℃0-450℃0-450℃Overlap width:100mm150mm200mmWelding width15mmx215mmx215mmx2Weld article number22/32/3Weld width17mm17mm25mmCavity12mm12mm22mmWelding strength≥90% base material (tensile resistant in shear direction)≥90% base material (tensile resistant in shear direction)≥90% base material (tensile resistant in shear direction)Weight5KG5KG5KGDetails ImagesOperating Criterion:Notice: In order to obtain the excellent quality and high efficiency, it should be manipulated by professional people since the welding quality of the machine has direct relationship with the enactment of speed and temperature.1, The user must choose to the three holes receptacle with earthing and confirm the good connection of exterior wire. Pick the pressure handle up to separate the up and down iron wheels and then plug the power supply on.2, Switch power supply on, and choose suitable temperature (Temperature adjusting diagram – literature) and speed,. Then pick some narrow material to weld for a try and make sure the best effect. Owing to the difference between the environmental temperature and the thickness of material, the welding temperature of the same material could be different. 3, We can choose to a referenced speed (about 1.5m/min) when select the temperature. And then slowly adjust the temperature from low to high.(about from 250’ C to 400’C)3, The estimation of the welding temperature: it can be directly watched the transparence PE material .If the welding mark is lever-off with transparence glass status, it showed that the temperature and the speed is suitable ;if the welding mark is seriously broken up, it showed that the temperature is too high or the speed is too low; If the welding mark is not transparence with white status, it showed that the temperature is on the slow side or the speed is on the fast side .And to the non transparence material ,it also can be tested by resistance pull after the whole party is cooled down .4, Mending the edge of the welding material smooth .The surface face to the front side, and overlap to left down and right up .The width of pulled up is 120mm.5, Plug the welding material between the two iron wheels to make the parallel between the body of the machine and the edge of mother material, and it can weld itself after confirmed the temperature and the speed. Usually the operator just watch the warp between the welding mark and the edge of the mother material and timely rectify it within a small scope .At the end of material welding, pick up the handle to separate the up and down iron wheels.6, Owing to the thermal inertial, it can adjust the temperature within small scope to offset the discrepancy in temperature if it comes too high or too low in the process of welding.7, In the process of welding, it can adjust through the two interior hexangular screw on the swaying head if the welding mark is not equality in two outside. (Just the corresponding screw in the upside of intensive welding deep or in the upside of loosen welding mark shadow)8, Welded material crossed with another material in the shape of “T”. The ways of welding is as the diagram below. Cut the crossing head sticking to the thermal wedge off 12cm inclined.“T” Type Welding diagramCompany ProfileQ1: Are you a manufacturer?A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds.Q2: Where is your factory? Can I visit your factory?A2: Dizo located in the city of Wuxi.Q3: How to buy your machine?A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number.Q4: Are we still need to install the machine after we got?A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well.Q5: How about your warranty?A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine.Q6: How can you guarantee we receive a good performance product?A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome.Q7: How soon can you deliver the equipment?A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days.Q8: Who do I talk to when I want to start an application?A8: Dizo has experiences of sales engineers to provide the assistance and support you require.Q9: Can I get a discount or can you do something with the price?A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance.Q10: Packaging & ShippingA10: Provide sturdy plywood case packaging machines, safety and meet the international export standard.
>>
