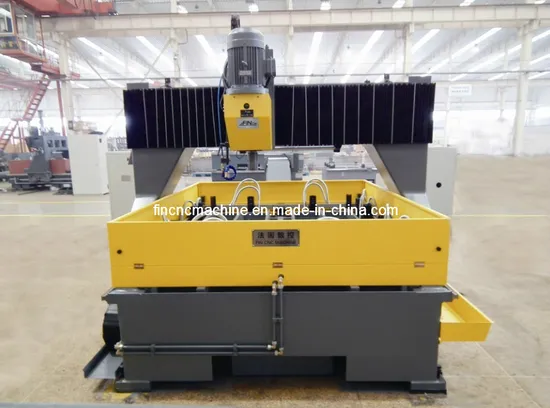

CNC Plate Flange Drilling Machine PLD2525

Product Description

CNC Plates Drilling Machine Model PLD2525
Main specification of PLD2525

Name	Item	Value
Max. size of workpiece	Length×width	2500×2500mm
	Thickness	200mm
worktable	Size of T notch	22mm
Drilling spindle	Quantity	1
	Max. drilling diameter	Φ50mm
	Rotation speed of spindle (frequency conversion)	120-450r/min
	Morse tamper of spindle	4
	Motor power of spindle	2×7.5kW
	Distance between spindle and worktable	200 ~ 550mm
Longitudinal movement of gantry(X axis)	Stroke of X axis	2500mm
	Movement speed of X axis	0-8m/min
	Servo motor power of X axis	2×2.0kW
	Positioning precision of X axis	0.08mm/full length
Transverse movement of drilling head (Y axis)	Sroke of Y axis	2500mm
	Movement speed of Y axis	0-8m/min
	Servo motor power of Y axis	1.5kW
	Positioning precision of Y axis	0.08mm/full length
Spindle feeding (Z axis)	Stroke of Z axis	350mm
	Feeding speed of Z axis	0-4000mm/min
	Servo motor power of Z axis	1.5kW
Chip conveyor and Cooling system	Motor power of chip conveyor	0.75kW
	Motor power of cooling pump	0.45kW
Electric system	CNC system	FAGOR8055
	Quantity of CNC axis	4
	Total power of motor	Approx.19kW
Overall dimensions	Approx.5200×3900×3200mm
Weight	Approx.16 t

Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
