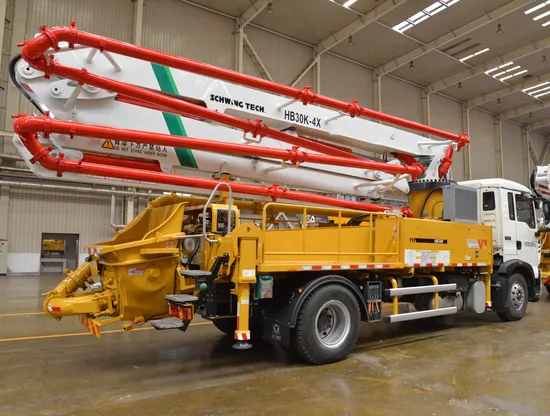

China Famous Brand 30m Concrete Pump Truck with Good Quality Spare Parts

Product Description

V7 series concrete pump truck is a new generation equipment which is developed by XC and SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
1.Large diameter (230 mm) Φ, large displacement (100 / hour) pumping systems.
2.Material absorption can reach more than 85%.
3.Effectively reduce emissions with the reversing, vulnerability of longer life.
4.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
5.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Specification

Description	Unit		Parameter value
Outline dimension	mm		10190×2500×3700
Overall weight	kg		20000
Chassis	Model		ZZ5207M521GC1
	Max. speed	km/h	90
	Max. grade-ability	%	35
	Wheelbase	mm	5200
	Tire		11.00R20
Engine	Model		MC07.28-30
	Max. power	kW	203
	Max. torque	N·m/(r/min)	1100/1200-1800
	Displacement	L	6.87
	Emission standard		Eruo III
Pumping system	Theoretical output	m³/h	100
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	25
	Delivery cylinder diameter ×stroke	mm	φ230×1600
	Max. diameter of pumping concrete	mm	40
	Filling height	mm	1550
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	29.6
	Reach depth	m	18
	Slewingradius	m	25.7
	Slewing angle	°	±270
Stabilizer span	Longitudinal span of stabilizer	mm	6100
	Transverse span of front stabilizer	mm	5555
	Transverse span of rear stabilizer	mm	4810
Others	Lubrication method		Automatic lubrication
	Control method		Manual/remote control
	Volume of water box	L	400

---
