High-Speed CNC Steel Plate Drilling Machine for H Beams

Product Description

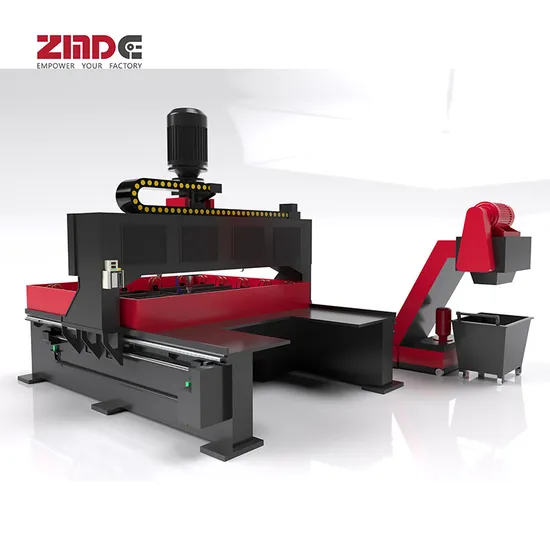

ZMDE Automated High Speed Steel Plate Drilling Machine CNC H Beam Drilling Machine for Structure Steel

>Experience Cost-Effective Efficiency <
1. Constructed from robust materials, this machine boasts a low failure rate, significantly reducing maintenance costs. Featuring industry-leading brands for components such as ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters.
2. Equipped with CRT display for automatic chip removal, it minimizes manual cleaning time, adding to overall cost savings.
3. Offers high precision, ensuring a high qualification rate for workpieces and reducing consumable expenses.
>Effortless Operation and Exceptional Productivity <
1. Intuitive human-machine interface with clear visuals, enabling the generation of automatic machining programs.
2. Operated via CNC and PLC for precise positioning every time.
3. Workpieces are easily managed using hydraulic clamps, controlled by a convenient foot switch, making operation labor-saving.
4. Features 12 high-speed hydraulic clamps distributed around the table, allowing four sets of workpieces to be clamped simultaneously.
5. Small workpieces can be clamped at the table's four corners, significantly reducing production preparation time and boosting efficiency.
6. Clamping small workpieces at the table's corners effectively shortens the production preparation period, enhancing overall production efficiency.
> Superior Quality and Wide Application Range <
1. Key components, including the gantry, column, and table, are made from durable materials, with the main machine weighing up to 6300kg.
2. Versatile across various industries, serving as essential equipment for connecting plate processing.
3. Supports a broad range of drilling diameters, from 12mm to 50mm.
> Adaptable to Diverse Production Scenarios <
1. Capable of continuous production of multiple batches of single flat-type workpieces.
2. Suitable for small batch production of diverse workpiece types, capable of handling plates in different shapes such as rectangular, round flange, and polygonal. It can process two or four different plate specifications simultaneously.
3. Produces multiple layers of thinner sheets in stacks, drilling up to 100mm deep holes.
4. Uses upper computer software to automate the drilling process, handling both through-holes and blind holes, step holes, and chamfered hole ends.
> Advanced Production Process Automation <
1. Boasts line board integration with a high degree of automation, automatically positioning according to the drilling program.
2. Adjusts optimal feeding rates based on different hole diameters for maximum efficiency.
3. Enables automatic, continuous processing of large hole diameters and one-time processing and molding.
4. Features an automatic chip removal function, streamlining the production process.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
