High Speed Double Wire Mesh Cable Chain Link Fence Making Machine

Product Description

Product Description

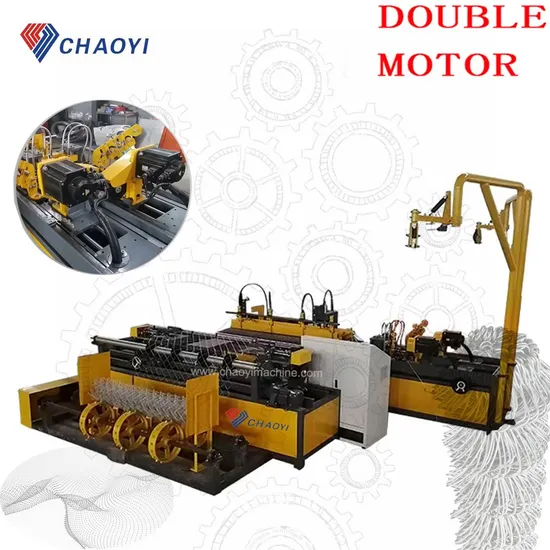

High Speed Double Wire Mesh Cable Chain Link Fence Making Machine
Introducing our Full Automatic Double Wire Chain Link Fence Machine - the ultimate tool for seamless fence production. With precise and efficient operation, this advanced machine guarantees high-quality chain link fences with ease. Elevate your fence manufacturing capabilities with this top-of-the-line equipment.

Model	CY2000	CY2500	CY3000
Mesh opening Size (mm)	30x30-100x100
Mesh Height (mm)	2000	2500	3000
Wire Diameter (mm)	G 1,50-3,20 PVC 2,80-4,50	G 1,50-3,20 PVC 2,80-4,50	G 1,50-3,20 PVC 2,80-4,50
Capacity	40-260	40-260	40-260
Power (kw)	7.5	7.5	7.5
Bending Edge	Knuckle-knuckle (Standard) Knuckle-twisted (Optional) Twisted-twisted (Optional)	Knuckle-knuckle (Standard) Knuckle-twisted (Optional) Twisted-twisted (Optional)	Knuckle-knuckle(Standard) Knuckle-twisted (Optional) Twisted-twisted (Optional)
Operator	1Person	1Person	1Person
Weight (kg)	3000	3100	3200
Space L*W (m* m)	5*5	5*5.5	5*6
Control System	Mitsubishi PLC automatic controller
Voltage	According to your need

Product Detail

Diamond chain link fence Serve Motor Though Serve Motor,the machine can running very fast,we have Delta,Panasonic,Housine,Siemens for your choose
Improved straighter wheel,up and down,left and right can be adjusted arbitrarily

Diamond Mesh Weaving Machine part,Better positioning,under the noise
Iron plates are welded to reinforce the machine body

Chain Link Machine PLC
The electric cabinet is equipped with remote control,which can be operated when the workers are
not near the machine

Chain Link Machine modified plug
The modified plug is make sure each socket can be conveniently and correctly connected

We using Japanese Mitsubishi PLC.
For the electrical components,we using France Schneider Brand

Application

MACHINE FEATURES
1.Double wire input ;
2.Width and length dimensions are entered via PLC touch screen. At the end of the length, the machine stops.
3.Speed will be adjustment on PLC touch screen, it works at the required speed.
4.Our machines design for working continuously 24/7 hours operation.
5. three kinds of mesh roll edge
*Knuckle -Knuckle * Twisted -Twisted * Twisted - Knuckle Reasonable designing.(Touch Screen Controller,Complete Wire Feeding, Wire Cutting.Mesh Conveying,and Edge Finishing,Fence Rolling totally Automatically.)
6.Rolling mesh machine,We have compact machine or rolling machine for your choose
7 Double wire input
8.Lock Machine
Company Profile
Factory Display

Certifications

Packaging & Shipping

FAQ
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for mchine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your Diamond Mesh Weaving Machine?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

---
