Yongchuang Water Solenoid Valve -Ycd11with 0.3-16bar

Product Description

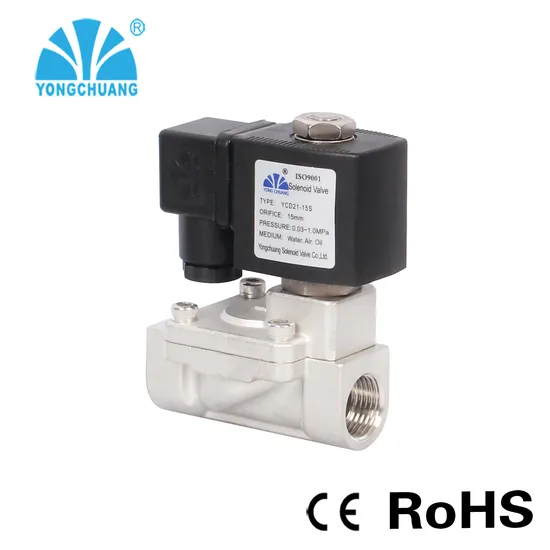

Water solenoid valve -YCD11with 0.3-16bar
Packaging & Delivery
Packaging Detail: 21*25*31CM
Delivery Detail: Within 20days after confirmation
Specifications
Water valve
1. ISO 9001: 2000, CE approved
2.1 million times life testing
3. Reliable quality
4, One year gurrantee
Water valve- YCD11 pilot diaphragm structure
Characteristic: 1. Pilot operated diaphragm construction with less power consumption for longtime working;
2. Applied to pressure system opened from0.3bars;
3. Lifespan can be at 1 million cycles.
Medium: Water, air, gas, etc.
Temperature: NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, -10 to 150
Pressure: YCD11: 0.03 ~ 1.6Mpa
Port Size: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Port Thread: BSPP, BSPT, NPT, Flange, UNF, M8X1
Orifice (mm): 12, 15, 20, 25, 32, 40, 50
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V@60Hz 110V, 220V@50Hz
Tolerance: +/- 10%
Coils: S91B/H, 17VA(AC), 10W(DC), IP65, 100%ED
Special coils: EX coil AC 220 V, DC 24 V;
Latching coil. DC 6 ~ 12 V on request)
Equivalent code YCL11 series
NASS COIL 0543 is suitable for YCD21
Material: Stainless steel/BRASS
Seal -NBR, EPDM, or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -Stainless Steel 430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Workshop
Production Delivery
Products will arrive to your office in 7~15 days after the payment is finished.
We will dispatch the valves by DHL, FedEx, TNT, UPS or by sea, it just depends on the weight of the products as well as your choice.
Our service
For OEM products
We will finish the production within 15 days after payment has been confirmed.cooperation with PARKER to improve our quality!
About delivery and shipping
We will choose the delivery way as you required: by sea,by air,by express ect. Save your cost is our mission.
Warranty
Any question or problem will be respond within 24 hours.
One year guarantee:
One year since delivery.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.
Quality control:
All the products are calibrated with real working condition, and 100%tested before shipping as qualified product.
Integrity:
All the warrenty and guarantee from us will be put into come true.
Detail Contact Information:
Name: Emily Yan


Thanks for your inquire!
You can according the below table to select type for yourself!

Port Size	Orifice	Cv	Min Pressure	Max Pressure		Seals Material	Body Material	Valve Body	Coil
				AC(22VA)	DC(14W)
3/8"	12	4.5	0. 03MPa	1. 6MPa	1. 6MPa	NBR, EPDM, or VITON,	Brass, or Stainless Steel	YCD1112 X X X	S21B/H
1/2"	15	4.5	0. 03MPa	1. 6MPa	1. 6MPa			YCD1115 X X X	S21B/H
3/4"	20	9.3	0. 03MPa	1. 6MPa	1. 6MPa			YCD1120 X X X	S21B/H
1"	25	12	0. 03MPa	1. 6MPa	1. 6MPa			YCD1125 X X X	S21B/H
1 1/4"	32	24	0. 03MPa	1. 6MPa	1. 6MPa			YCD1132 X X X	S21B/H
1 1/2"	40	29	0. 03MPa	1. 6MPa	1. 6MPa			YCD1140 X X X	S21B/H
2"	50	48	0. 03MPa	1. 6MPa	1. 6MPa			YCD1150 X X X	S21B/H

Q1: What is the Warranty for the solenoid valves?A1: For the valves,we have one and half year warranty.If any quality problems on our side during this period, we will make free replacement.Q2: What is NO and NC?A2: NO stands for normally open.While energized, valve closes; if de-energized, valve opens.NC stands for normally closed,While energized, valve opens; if de-energized, valve closes.Q.3: What is the assembly way of solenoid valves?A3: we suggest to make horizontal installation to enlarge life time,vertical installation is also ok if have special request.Q4:ls there any cheap shipping cost to import to our country?A4: For small order,express will be the best.And for bulk order, seal shipment is better but takes longer time.You can also make air shipment.Q5:Can we make customized product?A5:Yes, we are good at making solutions for customers. About 40% are customized products.Cooperate with top university in china,we have more than 20 professional engineers in solenoid valves. Our boss has more than 27 years experience in solenoid valve design.We have successfully made many excellent solutions for customers from china and abroad.
Detail Contact Information: Name: Emily Yan

---
