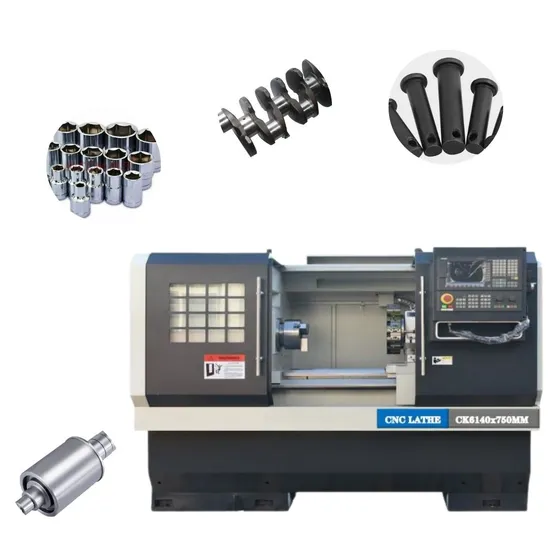

High Rigidity and Precision Model Ck6140 Flat Bed CNC Lathe Fabricado En China

Product Description

Product Feature:
1.High precision CNC flat bed lathe with hard rail, hardness around HRC50.
2.The bed ways are induction hardened.
3.Spindle with high precision bearings ensure the rigidity and precision.
4.Siemens,Fanus, Syntec, Fagor controller as optional.
5.Good quality grinding grade ball screw ensure positioning accuracy is more stable.
6.Monoblock cast iron base ensure high rigidity of the whole machine.

Machine Type	CK6140
Distance between centers	500mm/750mm/1000mm/1500mm
Max swing over bed	Φ400mm
Max swing over cross slide	Φ220mm
Width of bed	330mm
Spindle speed range	150-2500rpm
Spindle bore	Φ60mm
Spindle nose	A2-6
Taper of spindle bore	MT6
Chuck diameter	Φ250mm
X axis travel	250mm
Z axis travel	500mm/750mm/1000mm/1500mm
X/Z axis Rapid traverse	6/8 m/min
Turret Type	Electrical turret
Tool station number	4
Tool holder	25x25mm
External diameter	Φ55mm
Max travel	120mm
Taper of bore	MT4
Spindle motor power	5.5KW
Coolant pump power	120W
Overall dimension(LxWxH)	1700/2050/2520/3050 x 1400 x 1680mm
Packing dimension(LxWxH)	1850/2250/2640/3200 x 1530 x 2020mm
Net/Gross weight(kg)	1400/1600 1600/1800 1800/2000 2200/2400

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
