10m 12m CE ISO High Quality Self Propelled Scissor Lift

US$2,999.00-9,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
GTJZ
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Lift Rated Capacity
450kg
Platform Extend Capacity
110kg
Max.Platform Height(B)
6m
Max. Working Height(a)
8m
Overall Length(C)
1850mm
Overall Width(D)
790mm
Platform Size
2270*1120
Platform Extend Length
900mm
Wheelbase
1870mm
Lifting Motor/Moving Motor
24/3.3V/Kw
Max.Drive Speed
3.5/0.8km/H
Lifting Speed(up/Down)
100/80s
Anerold Battery
4*6/200V/Ah
Charger
24/30V/a
Max.Climbing Capacity
25%
Transport Package
Wooden Box
Specification
6-16 m
Trademark
YILU LIFT
Origin
China
HS Code
8428909090
Production Capacity
800units/Month

Product Description

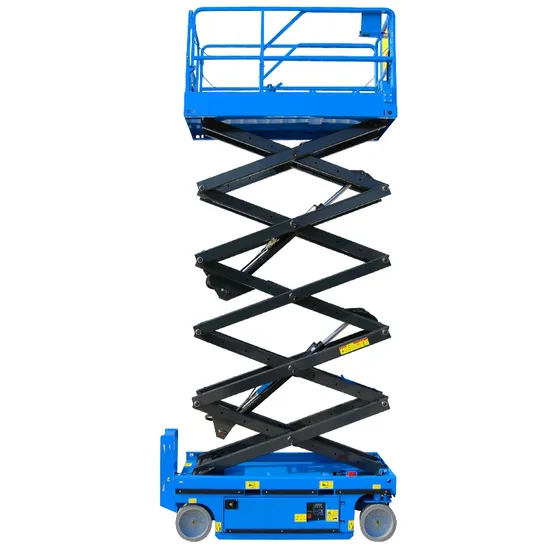

Electric Hydraulic Mobile Self Propelled Scissor Lift
Aerial Lift Platform equip high configuration with America TORJAN Battery, Americia CUITIS control system,Sweden bucher pump station,Italy doyle hydraulic valve and America white driving wheel.It is powered by DC, can be controlled by manually and move automatically and the moving speed is adjustable. There is many safety precautions, for example ,explosion-proof valves,spillover valve and emergency decline valve etc..

Model
 GTJZ08S
 GTJZ08F
 GTJZ10F
 GTJZ12F
 GTJZ14F
 GTJZ16F
Lift Rated Capacity
 kg
 230
 450
 450
 320
 320
 230
Platform Extend Capacity
 kg
 110
 110
 113
 113
 113
 110
Max.Platform Height(B)
 m
 6
 6
 8
 10
 11.8
 13.8
Max. Working Height(A)
 m
 8
 8
 10
 12
 13.8
 15.8
Overall Length(C)
 mm
 1850
 2430
 2430
 2430
 2430
 2850
Overall Width(D)
 mm
 790
 1210
 1210/890
 1210
 1210
 1310
Overall Height(Guardrails unfoldable)
 mm
 2200
 2200
 2350
 2470
 2600
 2620
Overall Height(Guardrails foldable)(E)
 mm
 1680
 1670
 1800
 1930
 2060
 2060
Platform Size(F)
 mm
 1680*740
 2270*1120
 2270*1120/860
 2270*1120
 2270*1120
 2700*1110
Platform Extend Length(G)
 mm
 900
 900
 900
 900
 900
 900
Ground Clearance(Retract/Elevated)
 mm
 100/19
 100/19
 100/19
 100/19
 100/15
 100/15
Wheelbase
 mm
 1390
 1870
 1870
 1870
 1870
 2280
Min.turning Radius
 mm
 300/1750
 0/2400
 0/2400
 0/2400
 0/2400
 0/2400
Lifting Motor/Moving Motor
 V/kw
 24/3.3
 24/4.5
 24/4.5
 24/4.5
 24/4.5
 24/4.5
Max.Drive Speed (platform Stowed/Elevated)
 km/h
 3.8/0.8
 3.5/0.8
 3.5/0.8
 3.5/0.8
 3.5/0.8
 3.5/0.8
Lifting speed(up/down)
 s
 100/80
 100/80
 100/80
 100/80
 100/80
 100/80
Anerold battery
 V/Ah
 4*6/200
 4*6/200
 4*6/200
 4*6/200
 4*6/200
 4*6/240
Charger
 V/A
 24/30
 24/30
 24/30
 24/30
 24/30
 24/30
Max.Climbing Capacity
 %
 25
 25
 25
 25
 25
 25
Maximum working Angle(indoor/outdoor)
 °
 1.5/3
 1.5/3
 1.5/3
 1.5/3
 1.5/3
 1.5/3
Driving Wheel Size
 mm
 Φ305*114
 Φ381*127
 Φ381*127
 Φ381*127
 Φ381*127
 Φ381*127
Overall Net Weight
 kg
 1430
 2250
 2350/2260
 2550
 2980
 3670

YILU electric and rough terrain scissor lifts offer you high performance and versatility ,boosting work site productivity.This type of aerial work platform lift is ideal for indoor maintenance or outdoor construction tasks. Electric scissor lifts have longer runtimes and promote quieter working environments. Engine powered scissor lifts traverse rough terrain, and the platform lifts plenty of tools and people to height.
