3015t-2D Quality Stone CNC Engraving Machinery Heads Replaceable Rich in Use

Product Description

Product Description

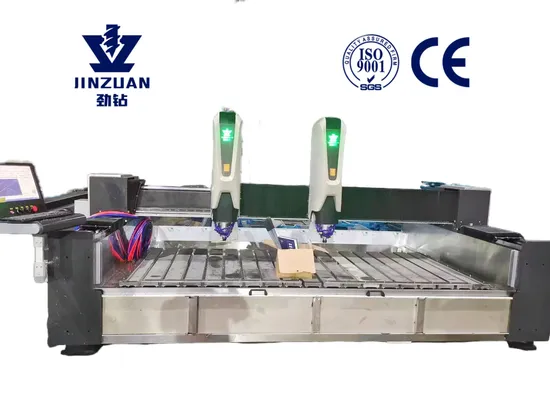

3015T-2D Quality Stone CNC Engraving Machinery heads replaceable rich in use
Professional engraving machine, granite, marble cutting effect is good; Mechanical structure optimization design, exquisite carving, exquisite pattern, vivid pattern; The machine appearance is beautiful, and the structure is not deformed, high cutting precision, high efficiency.
Product Parameters

Model No.	JZ-3015T-2D
Platform Dimension	3000*1500mm
Working Size	2500*1400mm for 1 piece; 1400*1400mm for 2 pieces
Working Table	Aluminum T-Slot Table with PVC Plate
Feed Height	≤450mm
Processing Speed	10m/min
Linear Guide Rail	Y Axis PMI-25 (Two Guide Rails); X Z Axis PMI-30
Spindle Power	5.5kW variable frequency water-cooled spindle
Spindle Speed	6000-24000rmp/min
Motor	standard 1108(AC digital sevo for select)
Lubrication	Automatic Lubrication
Coolant System	Industrial Coolant System

Operating Voltage	AC220V/50HZ or AC380V/50HZ
File Format	G code/HPGL
Engraving Tool	Φ3.175/4/6/12.7mm
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
Machine Dimension	4300*2300*2200mm
Weight	3000kg

Our Advantages

Ours advantage:
1) For guide rail, other manufactures adopt 2-2.5cm width, but we use 3.0cm width with large bearing capacity,stable operation and high precision.

2) Heavy duty, thickened steel body structure, rigid and not easy to deform, our machine is about 500kg-1000kg heavier than other manufactures'.
3) Compared with veteran Italian brands,we have price advantage.
Time limited welfare:
for 25th XIAMEN STONE FAIR 2025.3.16~3.19
1)Purchase engraving machines 2 sets during the exhibition will have the whole machine extended warranty 1 year (excluding spindle) + 2888 yuan worth of spindle 1 set + 3680 yuan worth of relief carving gallery mall membership + 1000 yuan worth of paths
2) Purchase engraving machine 3 sets during the exhibition will have the whole machine extended warranty 1 year(excluding spindle) + 2888 yuan worth of spindle 2 sets + 3680 yuan worth of relief carving gallery mall membership + 1,000 yuan worth of path
P.S.(and so on stacked, more purchases,more gifts)
3) Invite your friends to like the show and forward to your social medias. If you collects 58 likes,you will receive a USB flash drive + an umbrella.
4) Limited quantity,while stocks last
The final explanation right of this activity belongs to our company.

1.the whole machine is of steel structure, tempered and aging treatment, rigid and not easy to deform, and the bearing capacity of the machine can reach more than 4 tons.2.adopt imported linear double row guide rail, with large bearing capacity, stable operation and high precision.3.famous brand servo motor and reducer are adopted, with high speed, high precision and good stability.4.in case of operation, stop and fault alarm, LED lights flash synchronously.5.constant power spindle motor, large cutting force, high efficiency.6.CNC digital control, with power-off memory function, with knife breaking continued carving function.

Works Display

Packaging & Shipping

Packaging technology requirements are mainly rust, moisture, pressure, impact resistance, suitable for storage, transportation and sales.
Equipment is fully protected and boxed before shipment from the factory to ensure that it is in a non-damaged condition upon arrival at the site

About us
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time.
Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory
is at Shuitou town, Fujian province.
The biggest stone manufacture area in China. Maybe also the biggest importer &
exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat,
facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.

---
