US$10,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Bending Press
Hydraulic Press Brake
Control System
Estun E21 Nc System
Transport Package
in Container
Specification
bending width to 6000mm
Production Capacity
2000PCS/Year
Product Description

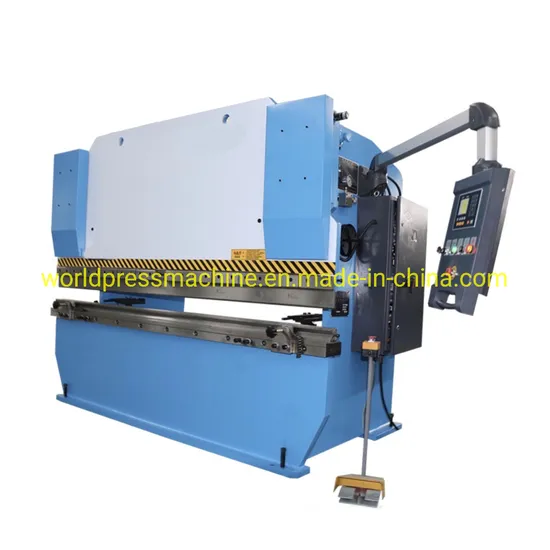

4m length hydraulic bending press for sale
Features:
1) A fully welded steel construction with full strength and rigidity.
2) Hydraulic down-stroke construction.
3) Synchronizing mechanism of the RAM adopting torque-tube and mechanical stop unit, stable and reliable.
4) Deflection-compensating mechanism of wedge construction.
5) Power fast adjustment, manual fine adjustment and counter-showing for the RAM stroke.
6) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
Details:
Specifications
| Items | unit | WC67Y-40/2500 | WC67Y-63/2500 | WC67Y-63/3200 |
| Nominal pressure | kN | 400 | 630 | 630 |
| Length of table | mm | 2500 | 2500 | 3200 |
| Distance between uprights | mm | 1900 | 2000 | 2300 |
| Throat depth | mm | 200 | 250 | 250 |
| Ram stroke | mm | 110 | 120 | 120 |
| Daylight | mm | 370 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 90 | 90 |
| Main motor | kW | 5.5 | 5.5 | 5.5 |
| Length | mm | 2600 | 2600 | 3400 |
| Width | mm | 1350 | 1380 | 1400 |
| Height | mm | 2100 | 2300 | 2400 |
| |
| Items | unit | WC67Y-80/2500 | WC67Y-80/3200 | WC67Y-80/4000 |
| Nominal pressure | kN | 800 | 800 | 800 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2300 | 1900 |
| Throat depth | mm | 320 | 320 | 320 |
| Ram stroke | mm | 120 | 120 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3400 | 4100 |
| Width | mm | 1400 | 1400 | 1400 |
| Height | mm | 2300 | 2300 | 2300 |
| Items | unit | WC67Y-100/2500 | WC67Y-100/3200 | WC67Y-100/4000 |
| Nominal pressure | kN | 1000 | 1000 | 1000 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2400 | 3000 |
| Throat depth | mm | 300 | 320 | 320 |
| Ram stroke | mm | 160 | 150 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3300 | 4000 |
| Width | mm | 1600 | 1800 | 1800 |
| Height | mm | 2500 | 2500 | 2300 |
>>
