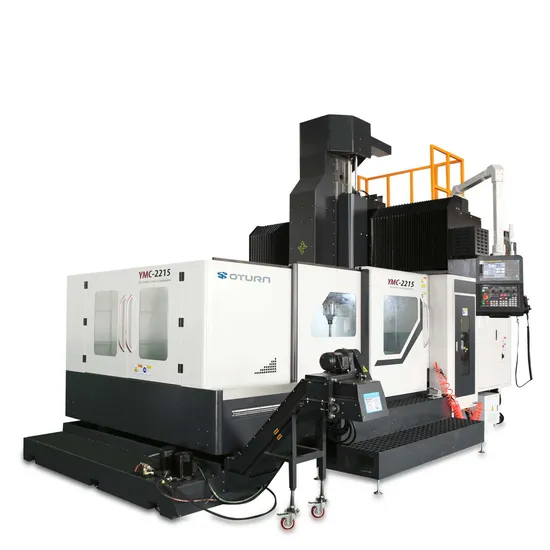

Low-Wear Roller Linear Guides CNC Gantry Machining Center Ymc2215

Product Description

Product Description
Boasting high rigidity and exceptional long-term accuracy retention
The primary elements of the Vmc Machining Center, such as the base, workbench, column, spindle box, and saddle, are meticulously analyzed through FEA finite element analysis. This ensures a design that is optimized for lightweight yet high-rigidity performance. The proximity of the spindle center to the guide rail surface, combined with minimal flipping torque, significantly enhances processing stability. Utilizing resin sand molding and high-strength, high-quality cast iron with comprehensive heat treatment processes to eliminate residual stress, our machine tools offer unparalleled structural rigidity. Precision manual scraping of contact surfaces further ensures optimal structural integrity. We provide a comprehensive product line with varied specifications, complemented by a highly elastic automatic tool-changing system and vertical-horizontal tool exchange capabilities, delivering automated, efficient, and highly productive machining performance. The modular spindle design accommodates various cutting characteristics to meet diverse machining requirements. The Y-axis features an ultra-high rigidity roller-type linear slide rail, merging the robust cutting rigidity of hard rails with the swift movement and low wear of linear slides, substantially enhancing rigidity and control.
Our three-axis system incorporates internationally acclaimed brand roller guide rails known for their robust rigidity and outstanding dynamic accuracy. Taiwan-made, large-diameter grinding ball screws are used for the three-axis transmission, offering a compact structure with smooth movements, minimal thermal elongation, and high precision. The screw support system forms a highly stable and rigid mechanical transmission mechanism. The high-precision spindle guarantees consistent and reliable lubrication for spindle bearings, while the standard spindle oil cooling system maintains long-term stability during operations.
Product Parameters

DESCRIPITION	UNIT	YMC-2215
Travel X/Y/Z	mm	2200/1500/800
Table Size	mm	2200×1480
Max.Table Load	kg	5000
Distance from Spindle Nose to Table	mm	150-950
Distance between Column	mm	1580
Spindle Tapper		BT50
Spindle RPM		6000
Spindle P.R	kw	15/18.5
G00 Feed Rate X/Y/Z	mm/min	15000/15000/ 7500
G01 Feed Rate	mm/min	1-8000
Machine Weight	kg	18000
Collant Tank Capicity	liter	400
Lubrication Tank	liter	4
Power Capicity	kVA	30
Air Pressure Request	kg/cm²	5-8
ATC Type		Arm type/Chain type
ATC Tapper		BT50
ATC Capicity		24(32)/40
Max.Tool dia./length	mm	φ125/400
Max.Tool Weight	kg	18
Machine size	mm	6900*3000*3400
Positioning accuracy	mm	0.008/300
Repeatability	mm	0.005/300
Min. tool change time	s	2.9

Products Configurations
