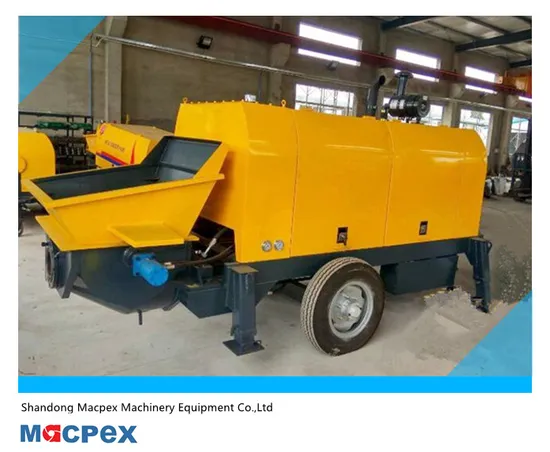

| HBTS80-16-110 |
| Items | Units | Parameters |
| Whole performance of machine | Max. theo. concrete output (L./H.) | m3/h | 84/50 |
| Max.concrete pumping pressure (H. /L.) | MPa | 8-16 |
| Distribution valve type | | S Valve |
| Concrete cylinder diameter×stroke | mm | Ф200×1800 |
| Hopper capacity×feeding height | L×mm | 800×1400 |
| Outlet diameter | mm | Ф180 |
| Power system | Electrical engineering model | | Y280M-4 |
| Electrical engineering power | kW | 110 |
| Rotate speed | r/min | 1480 |
| Hydraulic system | Circuit type | | Open circuit |
| Pumping system pressure | MPa | 32 |
| Mixing system pressure | MPa | 6-8 |
| Capacity of oil tank | L | 560 |
| Pump range | The biggest transportation is away from vertically (/Level) | m | 220/1000 |
|
| Other parameters | Max. aggregate diameter | mm | Slick scree: 50, |
| |
| Inside diameter of delivering pipe | mm | Ф125 |
| Dimensions:length×width×height | mm | 6000×2100×2250 |
| Total weight | kg | 6300 |
