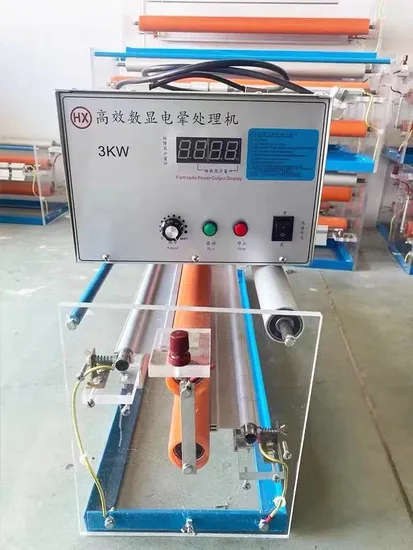

3kw 4kw 5kw 6kw Film Blowing /Printing/Laminaton Surface Treatment Machine Electrostatic Treater Equipment with Open Spark Rack

Product Description

3KW 4KW 5KW 6KW Film blowing /Printing/Laminaton Surface Treatment Machine Electrostatic treater equipment with Open spark rack
Usage:
The corona treatment machine adopts imported high-power module (IGBT) and is controlled by advanced pulse width modulation (PWM). It has the functions of automatic stable power output, automatic alarm, over-current, over-temperature protection, etc.; high output power, high efficiency, etc. .
It can handle all kinds of low-density polyethylene, high-density polyethylene, polypropylene, CPP, OPP and other refrigerated food packaging materials and metal film materials. Used in conjunction with printing machines (including gravure printing machines and embossing machines), it can effectively improve the printing quality and obtain the effect of bright and non-fading patterns; when used in conjunction with compound machines, it can greatly enhance the firmness of composite bonding; and blow molding Used in conjunction with the machine to perform surface heat treatment on blown film substrates for better results.
Technical parameter:

Model	2K	3K	4K	6K
Voltage	1PH 220V/50HZ	1PH 220V/50HZ	1PH 220V/50HZ	1PH 220V/50HZ
Power	0~2KW	0~3KW	0~4KW	0~6KW
Frequency	16~23KHZ	16~23KHZ	16~23KHZ	16~23KHZ
Applicable electrode	200~1600mm	200~2400mm	200~3200mm	200~4000mm
Work environment	Temperature: - 10 ~ 50 ºC, relative humidity no more than 85%, no corrosive gas
Processing media: all kinds of blow molding film, stretch film, multi-layer coextrusion film, casting film, coating film, laminated packaging film, flexible packaging film, printing film, aluminized film, white paper, kraft paper, plastic plastic composite and paper plastic composite processing, etc. Such as BOOP, BOPET, CPP, CPE, PVDC, EVA, BOPA, ordinary HDPE, LDPE and LLDPE films. Treatment effect (Corona value): > 43 dyne value

More machine photos:

---
