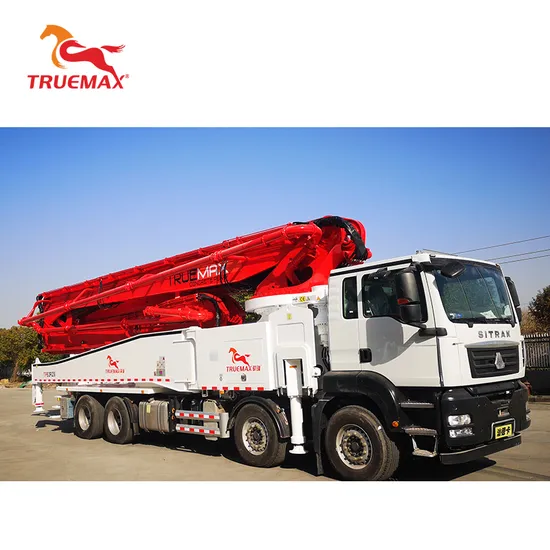

Hot Sale Concrete Pump for Sales Truck Mounted Boom Pump

Product Description

ITEMS		UNITS	TP25M4	TP38RZ5	TP43RZ5	TP49RZ6		TR56RZ6	TP63RZ6
Boom System	Vertical Reach	m	24.2	38	43	49		56	62.5
	Horizontal Reach	m	20.6	34	39	44		51	58.5
	Slewing Angle	°	±360	±270	±360	±270		±270	±270
	Rubber Hose Length	m	3	3	3	3		3	3
Pumping System	Max.Theoretical Output (Low/Hight)	m³/h	100	150/85	150/85	180/120		180/120	180/120
	Max.Theoretical pressure(Low/Hight)	MPa	5.6	5.9/10.7	5.9/10.7	8.3/12		8.3/12	8.3/12
	Distribution Valve	/	S Valve	S Valve	S Valve	S Valve		S Valve	S Valve
	Hydraulic System Pressure	MPa	32	32	32	32		32	35
	Concrete Cylinder (Bore×Stroke)	mm	260×1800	260×1800	260×1800	260×1900		260×2100	260×1900
	Delivery Line Diameter	/	DN125	DN125	DN125	DN125		DN125	DN125
	Hopper Capacity	L	700	700	700	700		700	700
Chassis	Chassis Brand	/	Isuzu/Sinotruk	Sinotruk	Sinotruk	Sitrak	Sinotruk	SITRAK	SITRAK
	Axles	/	4×2	6×4	6×4	8×4	6×4	8×4	8×4
	Engine Power	kW	210	297	297	324	297	324	324
	Max.Travel Speed	km/h	≤100	≤90	≤90	≤85	≤85	≤85	≤85
	Wheel ba	mm	5050	4800+1400	4800+1400	1950+4500+1400	4650+1400	1950+4500+1400	1950+4500+1400
Overall	Overall Dimensions(L×W×H)	mm	9590×2460×3629	11195×2496×3995	11750×2500×4000	12590×2500×4000	12190×2500×3960	13820×2550×4000	13730×2500×4000
	Total Weight	kg	18500	29300	32850	38500	35000	44000	44000

Product Information:
Be suited for different project application especially the small site and bridge projects. Upper parts can be designed according to customers' required chassis. And we could supply the chassis made in China.
Equipped with STIEBEL(from Germany) PTO box to connect engine with hydraulic oil pump, making the pump group run more stable and efficient.
Boom System: The boom system is designed by Multi physics analysis and testing. The steel is made by imported HSLA (High strength low alloy steel). All the welding are 100% inspected to ensure the structure rational and high reliability.
Adopt "R" type folding boom sections easy for special project. And the boom speed is adjusted
Sleeplessly, with compensated pressure, proportion system of sensitive to loading, as assure the flexible working of the boom. Maximum shock-absorbing controlled by multiple valve controller.
Pumping System: Tungsten steel glass plate and cutting ring guarantee the long using life. Automatic retraction of the concrete piston provides a more convenient and easier maintenance for the pumping system.
Automatic accelerator tracking system adjust the accelerator according to the actual pumping condition to save more diesel oil.
Hydraulic & Electrical System: Adopt double pumps with double circuits system and world famous hydraulic components. Variable displacement axial piston pump make the swing cylinder more stable and powerful. Operated by manual/panel/radio remote controller(NBB)
Product Show:
Company profile:
Zhejiang Truemax Engineering Co Ltd. is a manufacturer and high-tech enterprise integrating R&D, design, manufacturing and marketing.As the company's core industry,engineering construction machinery currently mainly covers three series:concrete machinery,crushing machinery and construction machinery
Truemax insists on a high starting point and high quality, and uses 5% of its sales revenue every year on technologe research and development, trying to making high-end products. In terms of management, Truemax adopts the 6S management system,so quality control is strictly implemented in all aspects of parts procurement, production, packaging and shipment,which makes our products reach the international advanced level.
Truemax actively responds to the national "Made in China 2025" strategy and the call of energy conservation and environmental protection.With the help of the national "One Belt and One Road" strategy, it continues to introduce professional talents and advanced technology. Through unremitting efforts, our services reach every corner of the country. Users anywhere in the country can get thoughtful and meticulous service.
FAQ:
Q : Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.

Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.

Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.

Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
