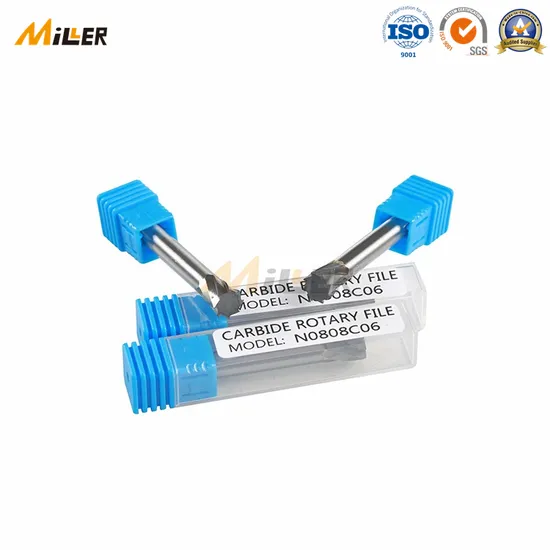

Inverted Cone Shape Carbide Deburring Tool Aluminum Cut Carbide Burr Applied on Machine Tools and Bench Drills

Product Description

Product Description
Tungsten carbide burrs also named carbide rotary files or high speed milling tool, they are used for grinding, shaping, cutting and removal the burrs, share edges and excess materials.
All Miller tungsten carbide burrs are manufactured on state of the art CNC machines to give high consistency and quality. General speaking, we offer carbide burrs with three different cut types -single cut, double cut and aluminum cut.
Aluminum cut carbide burrs have easy chip flow due to the wide tooth formation designed for maximum stock removal. Use for soft, non-ferrous and plastics materials.
know more, click it
Single cut Double cut Aluminum cut
Apart from the cut mentioned above, Miller can also provide flute available by special order when standard carbide burrs will not work for an application.

Product Features

Specification

As a professional and experienced tungsten manufacturer, Miller is uniquely positioned to help you identify the correct material and cut shape for your application

Cut Type	Preferred Application	Recommended Working Speed	m/min
Double cut	for a high stock removal	unalloyed steels/ cast steel	450-600
		alloyed steels,tool steels	250-350
		Rust and acid-proofed steels	250-350
		cast iron	450-600
Single cut	for a good surface finish	unalloyed steels/ cast steel	450-600
		alloyed steels,tool steels	250-350
		Rust and acid-proofed steels	250-350
		cast iron	450-600
Aluminium cut	for a high stock removal with aluminium and soft aluminium alloys, light metals, non-ferrous metals and plastics	Non-ferrous metals	700-900

Miller offers burr configurations and specifications to suit every ferrous and non-ferrous application, ensuring efficient stock removal and optimum surface finish.

Shape N Inverted cone	Item No.	Head diameter mm	Shank diameter mm	Cutting part length mm	Total length mm
	N0304	3	3	4	38
	N0607	6	6	7	50
	N0808	8	6	8	53
	N0909	9	6	9	55
	N1010	10	6	10	55
	N1213	12	6	13	58
	N1619	16	6	19	64
	N1916	19	6	16	61

Packaging

Reviews From Customers
Company Profile
Miller Carbide is an experienced manufacturer of tungsten carbide customized parts started from 2008. Our products cover carbide grinding jars & mortars, carbide grinding balls, carbide pegs, carbide static & dynamic rings, bead mill disks, carbide stirring rods, carbide static & dynamic jaws, carbide crusher plates, carbide grinding discs, carbide rotors, carbide roll rings, carbide guide rolls, carbide burrs, carbide sleeves & bushings, and other customized wear-resistant components for valve and pumps ect. With years of tungsten carbide engineering and manufacturing experience, we can concentrate our skills to the development of customized products for a wide spread of wear applications in milling & crushing industry.
Unlike other suppliers, Miller operates with three disciplines: Engineering, manufacturing and after sale service support. This means we are able to improve the efficiency of your machine and tools with customized products and direct access to the manufacturer. Miller Carbide works closely with its customers to ensure their requirements are designed efficiently and suitable for application. We can design the components needed from drawings or delivered samples.
We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. We are sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Company Advantage
We Offer You These

Direct Sales Integrating R&D, production sales and technology

Mold customization Rich molds OEM customization accepted

Adequate equipment grinding/pressing sintering/deep processing

Technical strength 15 years of experience in technical team, research & innovation

FAQ
1. How long is your delivery time?
We can arrange the shipment within 3-5 working days upon receipt of your payment for any sintered blanks stocked items. As for the mass production order or the customized products, we will need 10-30 days production leadtime and indicate the delivery time on the Proforma lnvoice. 2. Can l get a sample from you for Quality checking? Is it free of charge or need pay ? Yes, we can offer the sample for free of charge with freight collected if we have in stock. If the sample is special or non-standard shaped, we will charge you only the basic production costs accordingly. 3. What's grade should I choose for the product? If you have no idea about the grade, please kind to provide the information of the usage of the product, our technical team will suggest the most suitable grade for you.
4. Do you use recycle materials? We insist on quality come first, all the products are made of virgin raw materials. 5. Can you make the goods according to my sample or drawing ? What's your (MOQ) minimum order quantity? Yes, We have a group of experienced technical personnel, advanced mould production equipments. Our R&D teams were graduated from University, and our technical R&D team lead by Doctors of Powder Metallurgy and Professors. For the customized item we quote the MOQ individual; For the standard items in stock, we have no limitation on the MOQ . 6. Can I negotiate the Prices? Yes, we can consider the discount for bulk orders. 7. Can you give warranty of your products? Yes, we can give you 100% satisfaction guarantee on all items. We have the independent inspection department with the complete advanced product quality testing instrumentation to carry out IQC, PQC, FOC, and the detailed inspection pictures and testing report will be available and sent to you for confirmation before delivery. In case there was any quality problem, just please kindly to provide the pictures to show the problem by email. We should be 100% responsible for our problems and provide you the replacements at our costs. Contact us now! Get your free quote!

---
