High Temperature Medical Cotton Gauze Bleaching Machine

Product Description

Product Description
We supply whole production line for gauze bleaching process.

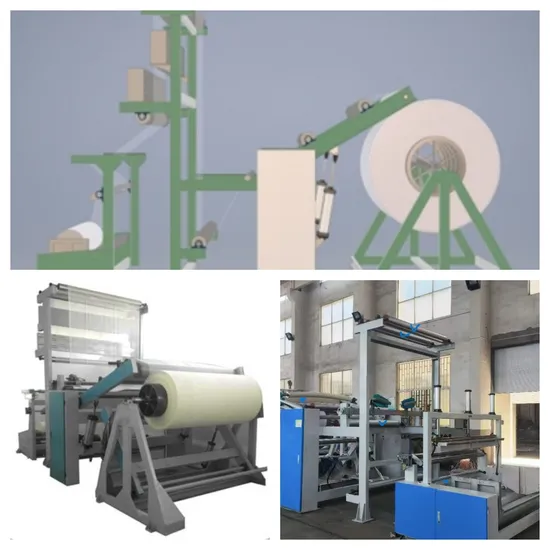

First step Medical gauze winding machine
Gauze winder is made up by unwinding frame,tension weftframe,winding machine ,A type frame and electric controlsystem.
Unwinding frame have adjusting device,can adjust thetension of the fabric two side edge and the fabric width,tomake in same tension and width.All the roller which touch the fabric is made by S.S materialand adopt New self-compensation electric edge absorberThe meter counting device can set the length ratio accordingto the elongation requirement and is used to record thenumber of rolls.
Second step Hydraulic turning device
Hydraulic turning device is made up by over turn frame,.hydraulic station and electric control systemAll the roller which touch the fabric is made by S.S material andadopt New self-compensation electric edge absorber,The process of over turn is safe and stable.
Third step Medical gauze bleaching machine(Horizinal or Vertical type)
Imported centrifugal pump for high efficiency and highperformance.
Efficient external heat exchanger for improved heatingefficiency.
Automatic control of water ingress, drainage, heating, cooling.etc., shortens the process time.Optional YNS series automatic feeding system.The main pump adopts frequency conversion control, and theflow rate can be adjusted arbitrarily, which saves energyconsumption during load shedding and starting.Optional central monitoring management system.Efficient cleaning system reduces cleaning time and reduceswater consumption.
Use air cushion technology to achieve a low bath ratio of 1:4.
Fourth step Dewatering
The vacuum dewatering machine performs effectivedehydration without changing the state of the gauze, and theoperation is safe and reliable, so that the moisture content inthe cloth is greatly reduced, thereby improving the dryingspeed, saving steam and electric energy, and improving workefficiency (drying speed can be improved 20%-25%).The gauze (or non-woven fabric) will be vacuum-pumped, thenthe moisture content inside and outside is uniform, which willnot cause a bias phenomenon, so that the dryer runs smoothlyand reduces the probability of breaking.After dewatering, the weight of the cloth roll is reduced, whichreduces the delamination of the cloth surface caused by the A-shaped frame pushing the cloth guide roller to the cloth roll,and can greatly reduce the delamination and delaminationduring the drying process.
Fifth step drying machine
The gauze dryer has an A-frame, a feed frame, a flat washingtank,a two-roll rolling machine, a barrel baking,a windingmachine and a control system.The whole machine adopts frequency converter to control theline speed synchronization of each section, and finely adjuststhe pendulum type elastic frame to ensure that the cloth isalways running under constant tension.Equipped with an advanced winding machine to ensure that thecloth is curled up neatly (within one side within ±3 mm). Themaximum diameter of the roll is 680mm.The parts in contact with the gauze are made of stainless steel.

Company Profile
We are medical gauze weaving machine manufacturer,meanwhile,we have good partner for next step bleaching,also have partner for gauze cutting,
rolling and packing machine.
We have more than 15 years experience to help customer set up a new and full production line for gauze production.
Our customer is in India,Pakistan,Ethiopia,Uzbekistan,Russia and Sri Lank.
More and more customer choose our machine,because of reliable quality,high efficiency and high cooperation.

After Sales Service
We will send engineer to install and trial machine,also teach customer how to use machine in high efficiency.

Name	Model	Usage	Advantages
air jet loom	SQ930	weave all fabric	High speed,low price
air jet loom	SQ910	calico or gauze fabric	low price
air jet loom	SQ710	gauze fabric	lower price
air jet loom	SQ720	glassfiber fabric	high output
air jet loom	SQ930M	terry towel	high output,low price
air jet loom	SQ810	velvet fabric	high output,low price
water jet loom	SQ822	filament heavy fabric	low price
water jet loom	SQ408	light weight fabric	high speed
water jet loom	SQ8100	high quality polyester fabric	good quality
water jet loom	SQ857	PP PE fabric for tarpaulin	good quality,low price
warping machine	SQ-YGA	Direct warping,for gauze	good quality
split warping machine	SQ188	for mono yarn	low price
sizing machine	SQ-HT	cotton yarn,blend yarn,short fiber yarn	good quality,low price
sizing machine	SQ-JSD	filament yarn	good quality
shemagh rapier loom	SQ788	shemagh yashmagh Arab scarf weaving machine	more experience
Jute fabric rapier loom	SQ799	Jute fabric weaving machine	more experience
medical gauze production line	SQ-GL	weaving-bleaching-final packing	more experience
terry towel production line	SQ-TL	warping-weaving-dyeing-sewing	save customer time
Towel slitting/cutting machine	SQ-T01	Seperate the towel fabric by knives automaticly	good quality
Towel length hemming machine	SQ-T02	automatic fold and hemming the edge	good quality
Towel cross cut and hemming machine	SQ-T03	automatic cut and hemming the edge for towel	good quality
cotton/rayon fabric production line	SQ-FL	warping-sizing-weaving-packing	save customer engergy
leno air jet loom	SQ-910L	leno fabric weaving machine	more experience
Longitudinal Sewing Machine	SQ-T02	bath towel & hand towel length hemming	best price
cross hemming machine	SQT03	bath towel & hand towel width hemming	best price
O/E Cotton yarn 16S-40S	SQ-C	Special for gauze production	best price
100% viscouse yarn	SQ-V	MURATA VORTEX SPINNING	best price
100% rayon fabric	SQ-F	Made by ourself	good quality & best price

---
