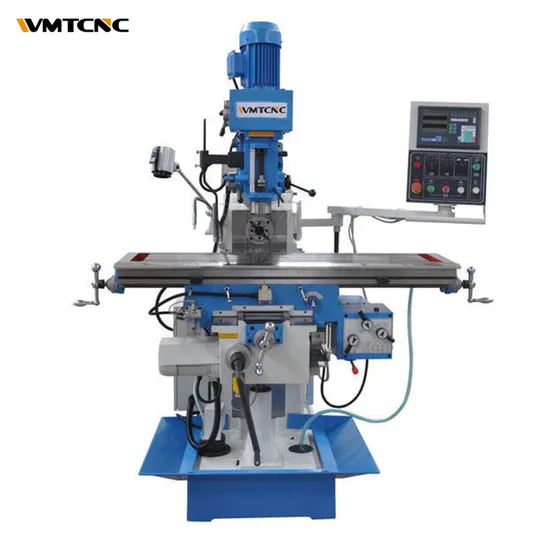

ZX6350ZA China Milling Machine with Drilling and Tapping Function

Product Description

Product Description
Machine Features:
1. Headstock swivels ±45º;
2. ZX6350ZA vertical milling spindle auto-feeding. XYZ axis auto feeding.
Main Specification:

Specification	ZX6350C	ZX6350Z	ZX6350ZA
Max.drilling dia	Φ50/Φ30mm	Φ50/Φ30mm	Φ50/Φ30mm
Spindle taper	ISO30,ISO40,R8, MT4
Max.vertical milling dia	25mm
Max boring dia	120mm
Distance spindle to table surface	100-480mm	140-490mm	80-460mm
Spindle speeds range(V/H)	115-1750rpm/40-1300rpm	90-2000/38-1310rpm	90-2000rpm/40-1300rpm
Spindle travel	120
Table size	1120×280mm	1120×280mm	1250×320mm
Table travel	600×260mm	600×260mm	600×300×430mm
Main motor power(V/H)	0.85/1.5,2.2kw	2.2,2.2kw	1.5,2.2kw
Packing size	1400×1630×2350mm	1400×1630×2350mm	1680×1480×2250mm
N.W/G.W	1200kg/1350kg	1200kg/1350kg	1450kg/1560kg

Standard Accessories:	Standard Accessories:
X/Y/Z auto feeding	3-axis DRO
coolant system	Rotary table
Working lamp	Dividing head
oil tray	Spindle protection
drill chuck	Worktable protection
8pcs milling chuck
QH160mm parallel vise
wrench, reduction sleeve, draw bar,horizontal milling bar

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
